Produktbeskrivning

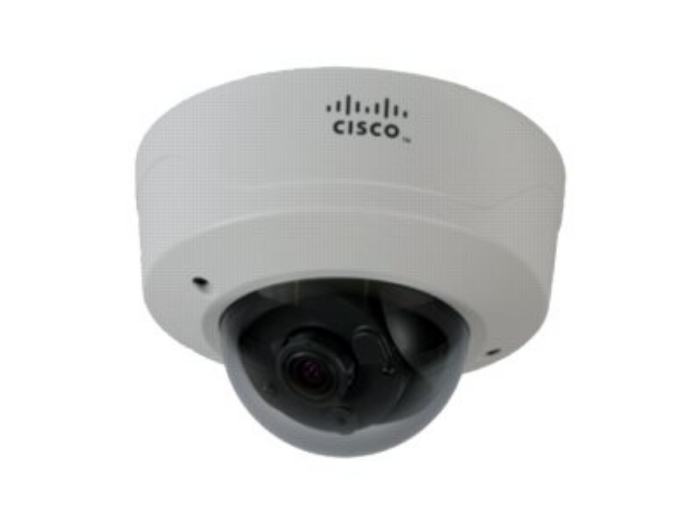

The Cisco Video Surveillance 3520 IP Camera is a high-definition, full-functioned video endpoint with industry-leading image quality and processing power. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
Egenskaper
True high-definition videoThe camera streams crisp and clear video while maintaining low network bandwidth.
Dual streamingThe camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame rate settings.
Day/night operationThe camera provides true day/night functionality and includes an IR filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
Flexible power optionsThe camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
Medianet supportThe camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
Teknisk specifikation
Allmänt
Typ av enhet | Nätverksövervakningskamera |
Formfaktor | Kupol |
Anslutningsteknik | Trådad |
Bredd | 17.4 cm |
Djup | 17.4 cm |
Höjd | 11.5 cm |
Vikt | 1.71 kg |
Kamera
Typ | Färg - Dag&Natt - fast - utomhusbruk |
Videoformat | NTSC, PAL |
Format för digital video | MJPEG, H.264 |
Maximal digital videoupplösning | 1280 x 800 |
Mimimibelysning | 0.4 lux - färg - F1.4 0.2 lux - svartvit - F1.2 |
Videotagning | 1280 x 800 @ 30 fps 1280 x 720 @ 30 fps |
Egenskaper | Skärpekontroll, automatisk exponeringskontroll, mättnadskontroll, ljuskontroll, kontrastkontroll, microSD-kortuttag, dubbel videoström, automatisk förstärkningskontroll, automatisk vitbalans |
Optisk konstruktion
Optisk zoomning | 3 x |
Brännvidd | 3 mm - 9 mm |
Iris-lins | Automatisk och manuell bländare (DC) |
Horisontellt visningsfält (grader) | 25.03 - 66.09 |
Vertikalt visningsfält (grader) | 15.77 - 40.66 |
Panorering
Område (grader) | 350 |
Lutning
Område (grader) | 80 |
Gränssnitt
Nätverksgränssnitt | Ethernet 10Base-T/100Base-TX |
Nätverksprotokoll | DHCP, HTTP, NTP, SMTP, TCP/IP, SNMP, RTSP, RTP, HTTPS, TLS, Bonjour, SSH, SSL, QOS, CoS, DSCP |
Antal larmingångar | 1 |
Antal larmutgångar | 1 |
Expansion/Anslutning
Gränssnitt | 1 x nätverk / effekt - Ethernet 10Base-T/100Base-TX - RJ-45 |
Diverse
Standarder som följs | CISPR 22 Class B, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, UL 60950-1 Second Edition, EN 60825, CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, IEC 60825, VCCI Class B |
Strömtillförsel
Strömkrav | DC 12 V / AC 24 V / PoE |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 50 °C |
