Produktbeskrivning

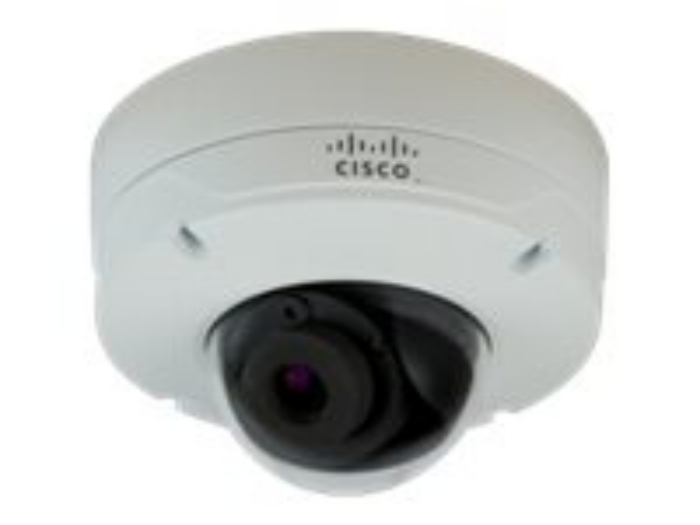

The Cisco Video Surveillance 6030 IP Camera is an outdoor, high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance Network.
Egenskaper
True high-definition videoThe camera streams crisp and clear 1080p (1920 x 1080) video at 30 fps while maintaining low network bandwidth.
Motorized focus and zoomThe lens on the 6030 IP Dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
Outdoor readyAn IP66 rated enclosure enables outdoor mounting.
Dual streamingThe camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
Day/night operationThe camera provides true day/night functionality, and includes an infrared (IR) filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
Flexible power optionsThe camera supports Power over Ethernet (PoE) 802.3af, 12 V DC, or 24 V AC power through an optional external power supply.
Teknisk specifikation
Allmänt
Typ av enhet | Nätverksövervakningskamera |
Formfaktor | Kupol |
Anslutningsteknik | Trådad |
Bredd | 17.4 cm |
Djup | 17.4 cm |
Höjd | 11.5 cm |
Vikt | 1.296 kg |
Kamera
Typ | Färg - Dag&Natt - fast - utomhusbruk |
Videoformat | NTSC, PAL |
Format för digital video | MJPEG, H.264 |
Maximal digital videoupplösning | 1920 x 1080 |
Exponeringsområde | 1/32000 sek - 1/5 sek |
Mimimibelysning | 0.4 lux - färg - F1.2 0.2 lux - svartvit - F1.2 |
Egenskaper | IR-filter, automatisk exponeringskontroll, dubbel videoström, automatisk förstärkningskontroll, automatisk vitbalans |
Bildsensor
Typ | CMOS 1/2.7" |
Optisk konstruktion
Optisk zoomning | 3 x |
Brännvidd | 3 mm - 9 mm |
Iris-lins | Automatisk och manuell bländare (DC) |
Horisontellt visningsfält (grader) | 37.5 - 103.7 |
Vertikalt visningsfält (grader) | 21.6 - 71.2 |
Panorering
Område (grader) | 350 |
Lutning
Område (grader) | 80 |
Gränssnitt
Nätverksgränssnitt | Ethernet 10Base-T/100Base-TX |
Nätverksprotokoll | DHCP, HTTP, NTP, SMTP, TCP/IP, SNMP, RTSP, RTP, HTTPS, TLS, Bonjour, SSH, SSL, QOS, CoS, DSCP |
Antal larmingångar | 1 |
Antal larmutgångar | 1 |
Expansion/Anslutning
Gränssnitt | 1 x nätverk / effekt - Ethernet 10Base-T/100Base-TX - RJ-45 |
Diverse
Standarder som följs | CISPR 22 Class B, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, UL 60950-1 Second Edition, EN 60825, CSA C22.2 No. 60950-1, IP66, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, IEC 60825, VCCI Class B |
Strömtillförsel
Strömkrav | DC 12 V / AC 24 V / PoE |
Miljöparametrar
Min temperatur vid drift | -40 °C |
Max temperatur vid drift | 55 °C |
