Produktbeskrivning
Webex Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations - further removing the barriers to usage and deployment of video in medium to large-sized rooms.

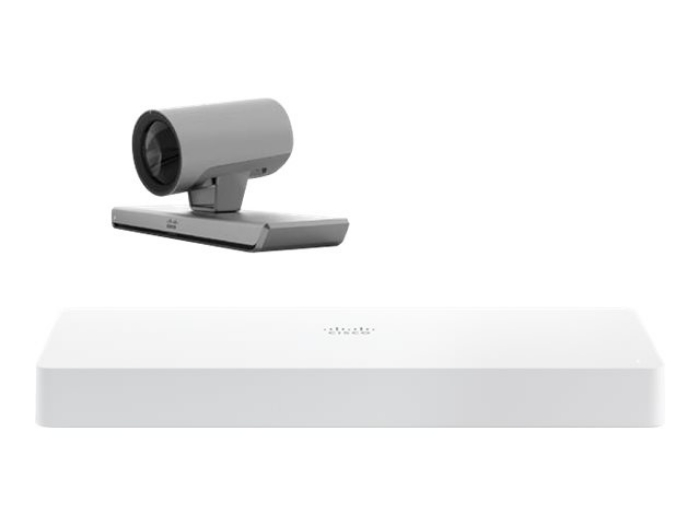

The Room Kit Plus - comprising a powerful codec, a quad-camera bar with integrated speakers and microphones and the intelligent Room Navigator control panel - is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces - whether registered on the premises or to the Webex cloud service.
Egenskaper
Bringing more intelligence to medium to large-sized roomsThe Webex Room Kit Plus is video innovation in a box, bringing more intelligence and usability to your medium to large-sized rooms team collaboration rooms. While others are still struggling to insert advanced features such as speaker tracking, wireless sharing, and 4K content into their high-end products, Webex by Cisco is already proliferating these innovations to meeting rooms of all sizes in a cost-effective and simple way. With the Room Kit Plus, Webex is helping customers experience smarter meetings, enable smarter presentations, and create smarter room and device integrations. These features were previously the domain of higher-end video conferencing rooms, but can now be brought to every room and every team. And when registered to Webex, additional cloud-based functionalities are enabled that enhance the user experience and team workflow as well as further simplifying deployment.
An affordable way to purchase hardwareWebex Hardware as a Service provides a new way to purchase hardware with a simple, scalable and flexible way to pay. Stay up to date with the latest models of IP Phones and Webex Devices to enhance collaboration and create workspaces for the future. And get ready for all the power of Cisco's unified cloud platform!
Smart meetingsPowerful, integrated cameras deliver intelligent view capabilities, such as automatic framing and speaker tracking; automatic noise suppression reduces meeting disruptions.
Smart presentationsDual screens, dual content sources, wireless sharing, and 4K content make for great presentations.
Smart roomsPeople count for usage metrics and resource allocation; tight integrations with screens to enhance user interactions; APIs and macros allow meeting personalization.
Audio-visual integrationThe Codec Plus is an entry-level integrator codec, supporting third-party audio systems. Control systems can use RS-232 with a USB adapter, or SSH.
Registration flexibilityBuilt for both cloud and on-premises deployment, protecting your investment.
Teknisk specifikation
Allmänt
Typ av enhet | Paket för videokonferens |
VoIP-protokoll | H.323 |
Röst-Codec | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Videocodecs | H.264 |
Servicekvalitet | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
Tilldelning av IP-adress | DHCP |
Säkerhet | IEEE 802.1X, H.235 v3 |
Nätverksprotokoll | HTTP, DNS, HTTPS, NTP |
Mått och vikt (komponenter) | Kamera - Bredd 95 cm Djup 10.3 cm Höjd 12 cm Vikt 4.8 kg Huvudsystem - Bredd 35.9 cm Djup 14.3 cm Höjd 4.3 cm Vikt 1.77 kg |
Modem
Digitalt signaleringsprotokoll | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol | H.264 |
Egenskaper | DTMF-avkodning |
Videoingång
Typ | Digital videokamera (färg) - extern |
Typ av gränssnitt | HDMI |
Upplösning vid digital videofångst | 1920 x 1080 |
Videoutgång
Bildskärmsgrafik som stöds | UHD (3840 x 2160) |
Digital videostandard | High-Definition Multimedia Interface (HDMI) |
Ljudingång
Typ | 3 mikrofoner - integrerad |
Ljudutgång
Typ | Högtalare |
Frekvensrespons | 70 - 20000 Hz |
Inmatningsenhet
Typ | 10-tums pekskärm |
Nätverk
Anslutningsteknik | Trådlös, kabelansluten |
Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Nätverks/transportprotokoll | NTP, DHCP, DNS |
Funktioner | Stöd för DiffServ, monterbar på vägg, Quality of Service (QoS), SSH-stöd, Audio Return Channel (ARC), 4 K upplösningssupport, uttag för säkerhetslås (kabellås säljs separat), automatisk gainkontroll (AGC), 802.1x-autentisering, URI-uppringning, administrator's password |
Standarder som följs | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion/Anslutning
Gränssnitt | 2 x bildskärm / video - HDMI-ingång - 19-stifts HDMI typ A 1 x bildskärm / video - HDMI-ingång - 19-stifts HDMI typ A 2 x bildskärm / video - HDMI-utgång - 19-stifts HDMI typ A 1 x ljud - utgång - mini-phone stereo 3.5 mm 1 x ljud - utgång - RCA 3 x ljud - ingång - minitelefon 3,5 mm 3 x nätverk - RJ-45 1 x USB 2.0 |
Diverse
Medföljande kablar | 1 x nätverkskabel - 8 m |
Standarder som följs | AES, RoHS, WEEE, CEC, Directive 2002/96/EC, Directive 2011/65/EU, FCC CFR47 Part 15 B Class A, Directive 2014/35/EU, Directive 2014/30/EU, Directive 2014/53/EU |
Strömtillförsel
Nätdel | Nätaggregat - extern |
Nätspänning | AC 120/230 V (50/60 Hz) |
Energiförbrukning vid drift | 70 Watt |
Tillverkarens garanti
Service och support | Begränsad garanti - 90 dagar Begränsad garanti - utbyte av delar i förväg - 10 dagar |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 10 - 90% |
