Produktbeskrivning

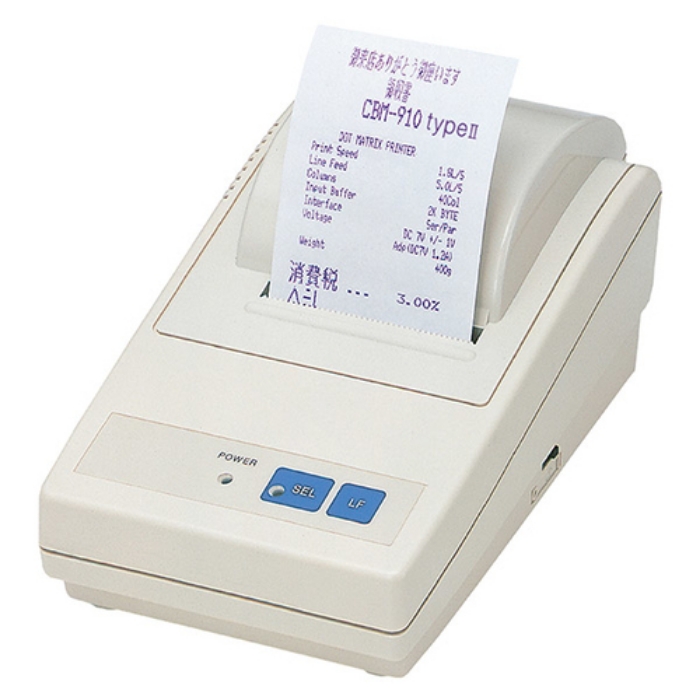

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.



Viktiga egenskaper

Citizen CBM-910II. Print technology: Dot matrix, Type: POS printer, Print speed: 2.5 lps. Printing media thickness: 0.13 µm, Maximum roll diameter: 6 cm, Roll dimensions: 57.5 x 60. Connectivity technology: Wired, Serial interface type: RS-232, Standard interfaces: RS-232. Ribbon life: 200 million characters, Certification: CE Marking/TUV- GS/FCC class A/VCCI class A. Product colour: White



Teknisk specifikation

Print technology	Dot matrix
Type	POS printer
Colour	No
Print speed	2.5 lps
Character size	1.62 x 2.4 mm
Character sets	Katakana,PC437,PC858,PC860,PC863,PC865,WPC1252

Roll dimensions	57.5 x 60
Printing media thickness	0.13 µm
Maximum roll diameter	60 mm

Connectivity technology	Wired
Serial interface	Yes
Serial interface type	RS-232
Standard interfaces	RS-232
Serial ports quantity	1

Ethernet LAN	No
Wi-Fi	No

Ribbon life	200 million characters
Certification	CE Marking/TUV- GS/FCC class A/VCCI class A

Product colour	White

Power source type	AC
AC input voltage	230 V
Operating current	1.6 A

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 85 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %

Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP Home,Windows XP Professional

Width	106 mm
Depth	180 mm
Height	88 mm
Weight	470 g

AC adapter included	Yes
Quick start guide	Yes

Column capacity	24

Harmonized System (HS) code	84433210

Voltage	7 V

LED indicators	Yes
Buffer size	2 KB
