Produktbeskrivning

High speed, LCD control POS printing
Lightweight, palm-sized design

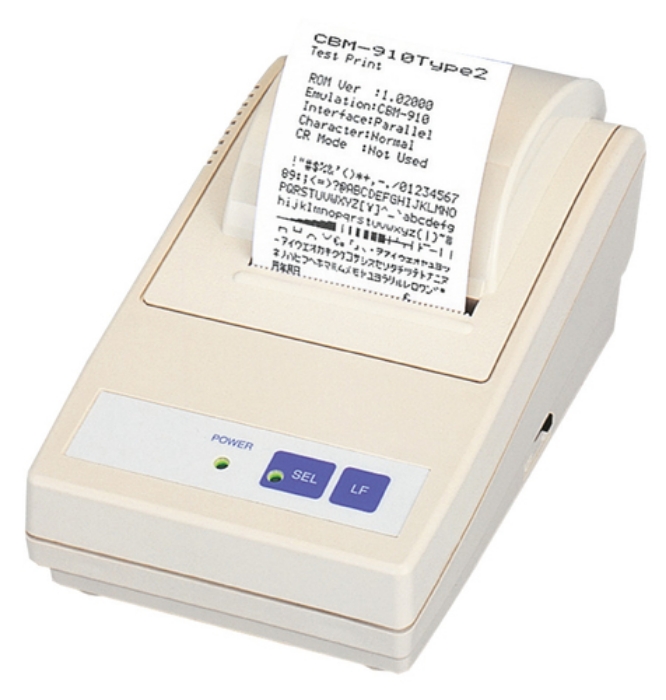

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.



Viktiga egenskaper

Citizen CBM-910II. Print technology: Dot matrix, Type: POS printer, Print speed: 1.8 lps. Printing media thickness: 0.13 µm, Maximum roll diameter: 6 cm. Connectivity technology: Wired, Standard interfaces: Parallel. Certification: CE Marking/TUV- GS/FCC class A/VCCI class A. Product colour: White



Teknisk specifikation

Print technology	Dot matrix
Type	POS printer
Colour	No
Print speed	1.8 lps
Character size	1.08 x 2.4 mm
Character sets	Katakana,PC437,PC858,PC860,PC863,PC865,WPC1252

Maximum roll diameter	60 mm
Printing media thickness	0.13 µm

Connectivity technology	Wired
Parallel connector	Yes
Standard interfaces	Parallel
Parallel ports quantity	1

Ethernet LAN	No
Wi-Fi	No

Certification	CE Marking/TUV- GS/FCC class A/VCCI class A

Product colour	White

Power source type	AC,DC
AC input voltage	230 V
DC output voltage	7 V

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %

Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP Home,Windows XP Professional

Width	106 mm
Depth	180 mm
Height	88 mm
Weight	470 g

AC adapter included	Yes
Quick start guide	Yes

Column capacity	40

Harmonized System (HS) code	84433210

Buffer size	2 KB
LED indicators	Yes
