Produktbeskrivning

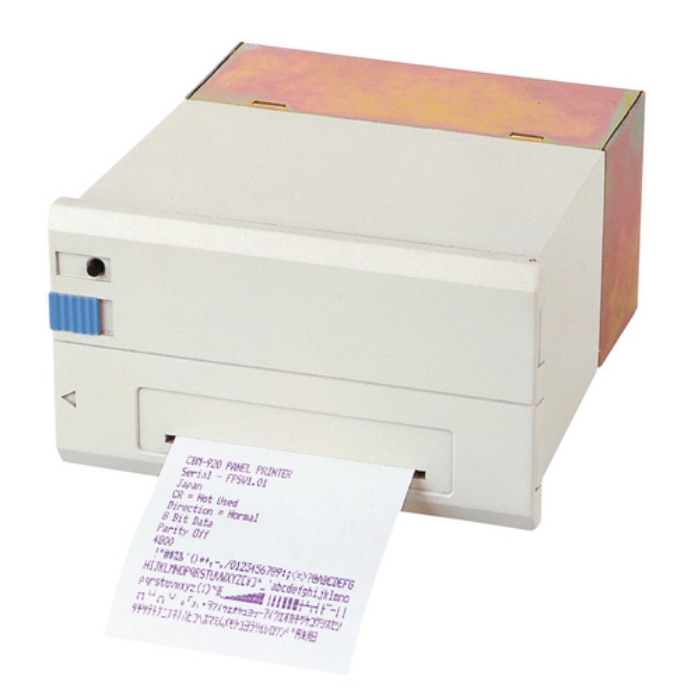

The CBM920II is built for panel mountingI. The machine also incorporates specialised auto loading and a paper end sensor for optimum efficiency. Robust construction gives total reliability, with a MCBF of at least 1.0 million lines, while the capability of bit image graphics printing and an integral memory switch increase flexibility and functionality still further.



Viktiga egenskaper

Citizen CBM-920II. Print technology: Dot matrix, Type: POS printer, Print speed: 150 mm/sec. Printing media thickness: 130 µm, Maximum roll diameter: 6.9 cm, Supported paper width: 57.5 mm. Connectivity technology: Wired. Ribbon life: 1.5 million characters, Certification: FCC class B. Product colour: White



Teknisk specifikation

Print technology	Dot matrix
Type	POS printer
Colour	No
Print speed	150 mm/sec
Character size	1.08 x 2 mm
Character sets	852,857,863,866,Katakana,WPC1252

Maximum roll diameter	69 mm
Maximum printing width	57.5 mm
Supported paper width	57.5 mm
Printing media thickness	130 µm

Connectivity technology	Wired
Serial ports quantity	1

Ethernet LAN	No
Wi-Fi	No

Ribbon life	1.5 million characters
Certification	FCC class B

Product colour	White

Power source type	DC

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 85 %
Storage relative humidity (H-H)	10 - 90 %

Width	106 mm
Depth	180 mm
Height	88 mm
Weight	470 g

Column capacity	40

Harmonized System (HS) code	84433210

Buffer size	2 KB
