Produktbeskrivning
All Citizen label and barcode printers are designed with ease of use in mind and our CL‑S700 series is no exception.
- Hi-Open heavy duty metal case: opens “vertically” meaning that the footprint of the printer does not change when the cover is open. Soft-close top cover for user safety and user courtesy.
- Front Loading Rewinder on R models for easy rewinding of the backing paper when printing in "peel mode" or when printing batches of labels. The front of the printer drops down for the simplest rewinder operation ever seen!
- 300 dpi higher resolution available as a factory option using our CL‑S703 model or by upgrading a 200 dpi model.
- Easy ribbon loading: Hi-Lift metal mechanism opening to a full 90° to allow for easy ribbon access. Ribbons up to 450 metres long either inside or outside wound with ARCP ribbon control.
- Our CL-S700DT model is direct thermal only making ideal for courier and logistics applications.
- CrosEmulation supports both Datamax and Zebra emulations and will sense the language being used and offer to switch emulations automatically.
- Power switch is conveniently located at the front of the printer with large graphic LCD for clear indication of printer status and easy printer configuration.
- Parallel, serial and USB interfaces standard on most models with optional Ethernet and WiFi Wireless LAN
- s-Technical specifications and detailed information are all available from our datasheets available in PDF form. A model overview is shown below.
Viktiga egenskaper

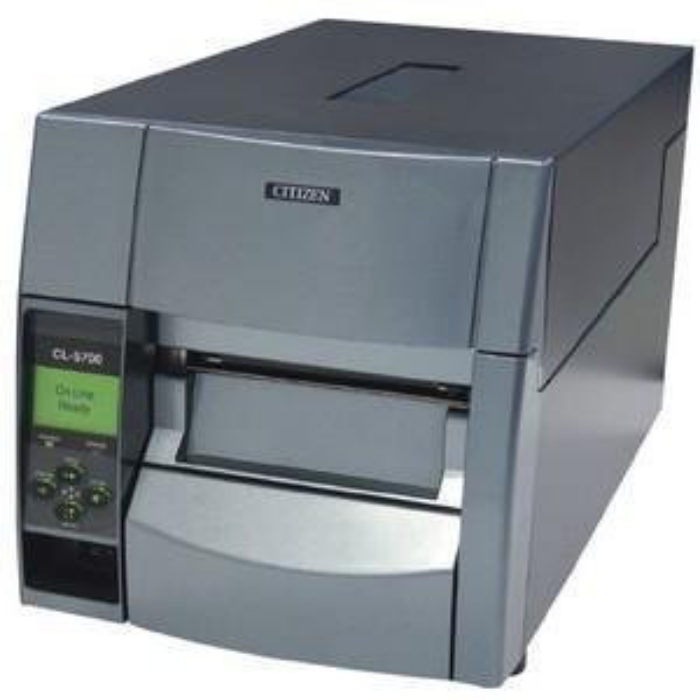

Citizen CL-S700. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203, Print speed: 254 mm/sec. Connectivity technology: Wired. Supported paper width: 12.5 - 118.1 mm. Product colour: Grey
Teknisk specifikation
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|
| Colour | No |
|---|
| Maximum resolution | 203 DPI |
|---|
| Print speed | 254 mm/sec |
|---|
Paper handling
| Ribbon length | 450 m |
|---|
| Supported paper width | 12.5 - 118.1 mm |
|---|
| Maximum roll diameter | 200 mm |
|---|
| Supported paper width (imperial) | 1.00 - 4.6 " |
|---|
| Media thickness | 0.0635 - 0.254 mm |
|---|
| Maximum media length | 812.8 mm |
|---|
| Core diameter | 25.4 mm |
|---|
| Media thickness (imperial) | 0.0025 - 0.01 " |
|---|
| Maximum media length (imperial) | 32.0 " |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
| PC connected | Yes |
|---|
| Parallel ports quantity | 1 |
|---|
| RS-232 ports | 1 |
|---|
| RS-232 interface | Yes |
|---|
| Standard interfaces | Parallel,Serial,USB 1.1 |
|---|
| USB 1.1 ports quantity | 1 |
|---|
| Optional connectivity | Parallel,Serial (RS-232) |
|---|
Performance
| Internal memory | 16 MB |
|---|
| Flash memory | 4 MB |
|---|
Design
| Product colour | Grey |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Housing material | Metal |
|---|
System requirements
| Compatible operating systems | Windows XP/2003/2008/Vista |
|---|
Weight & dimensions
| Width | 255 mm |
|---|
| Depth | 490 mm |
|---|
| Height | 265 mm |
|---|
| Weight | 13300 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Other features
| Form factor | Desktop |
|---|
| Emulations | Datamax I, DMX400, ZPL-II |
|---|
