Produktbeskrivning
All Citizen label and barcode printers are designed with ease of use in mind and our new CL‑S700 printer is no exception.
In fact, we believe we have exceeded even our own high standards with our latest design.
Hi-Open™ case: opens “vertically” meaning that the footprint of the printer does not change when the cover is open.
Front Loading Rewinder (CL-S700R model) for easy rewinding of the backing paper when printing in "peel mode" or when printing batches of labels. The front of the printer drops down for the simplest rewinder operation ever seen!
300 dpi higher resolution available as a factory option using our CL‑S703 model or by upgrading a 200 dpi model.
Easy ribbon loading: Hi-Lift™ metal mechanism opening to a full 90° to allow for easy ribbon access. Our CL-S700DT model is direct thermal only making ideal for courier and logistics applications.
Cross-Emulation™: Supports both Datamax® and Zebra® emulations and will sense the language being used and offer to switch emulations automatically.
Heavy duty metal case for strength and durability
Ribbons up to 450 metres long either inside or outside wound with ARCP™ ribbon control
Power switch is conveniently located at the front of the printer.
Large graphic LCD for clear indication of printer status and easy printer configuration.
Soft-close top cover for user safety and user courtesy.
Parallel, serial and USB interfaces standard on most models with optional Ethernet and Wireless LAN
Viktiga egenskaper

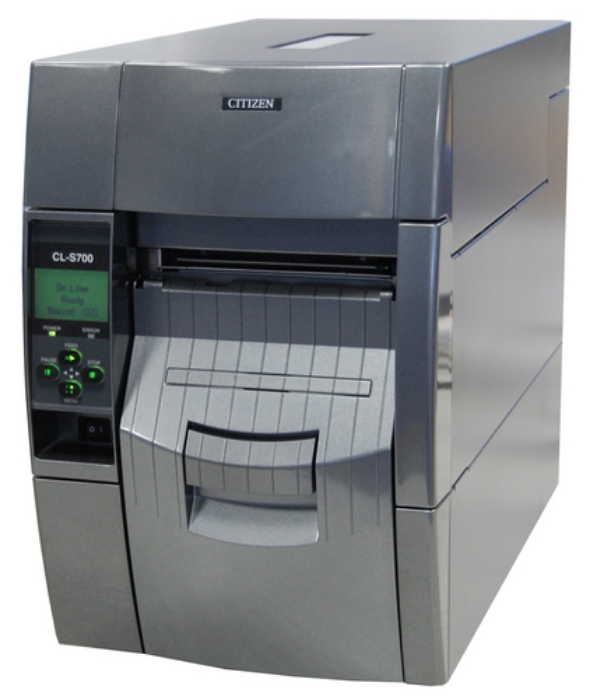

Citizen CL-S700R. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 254 mm/sec. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Colour | No |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 254 mm/sec |
|---|
| Maximum printing width | 104.1 mm |
|---|
Paper handling
| Ribbon length | 450 m |
|---|
| Media thickness (imperial) | 0.0025 - 0.01 " |
|---|
| Maximum media length (imperial) | 0.25 - 32 " |
|---|
| Core diameter | 25.4 mm |
|---|
| Maximum media length | 6.35 mm |
|---|
| Media thickness | 0.0635 - 0.254 mm |
|---|
| Maximum roll diameter | 200 mm |
|---|
Ports & interfaces
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
| Parallel ports quantity | 1 |
|---|
| RS-232 ports | 1 |
|---|
| RS-232 interface | Yes |
|---|
| USB 1.1 ports quantity | 1 |
|---|
Performance
| Internal memory | 16 MB |
|---|
| Flash memory | 4 MB |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
System requirements
| Compatible operating systems | Windows XP/2003/2008/Vista |
|---|
Weight & dimensions
| Width | 255 mm |
|---|
| Depth | 385 mm |
|---|
| Height | 490 mm |
|---|
| Weight | 17600 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
