Produktbeskrivning

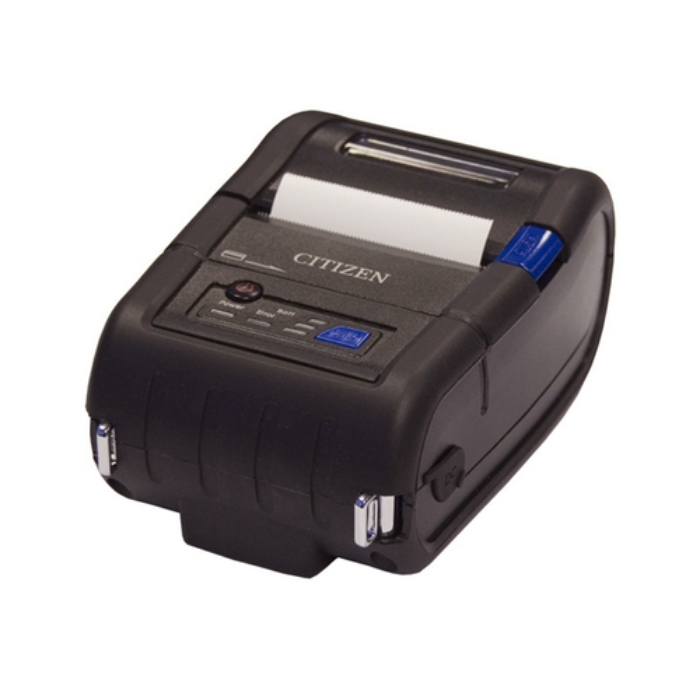

The CMP-20II mobile printer provides compact and robust printing virtually anywhere, with both Bluetooth and WiFi connectivity. Quick and simple to use, the CPM-20II is designed to save you time when printing 2 inch wide mobile receipts. Fast operation and reliable printing is assured, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.



Viktiga egenskaper

Citizen CMP-20II. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 65 µm, Maximum roll diameter: 4.8 cm, Supported paper width: 58 mm. Connectivity technology: Wired & Wireless, USB connector: Mini-USB Type-B, Standard interfaces: Bluetooth, Serial, USB. Page description languages: CPCL-native, ESC/POS. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Print speed	80 mm/sec

Maximum roll diameter	48 mm
Supported paper width	58 mm
Maximum printing width	48 mm
Printing media thickness	65 µm

Connectivity technology	Wired & Wireless
USB port	Yes
USB 2.0 ports quantity	1
USB connector	Mini-USB Type-B
Serial interface	Yes
Bluetooth	Yes
Serial ports quantity	1
Standard interfaces	Bluetooth,Serial,USB

Ethernet LAN	No
Wi-Fi	No

Page description languages	CPCL-native,ESC/POS

Product colour	Black

Power source type	Battery
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Battery technology	Lithium-Ion (Li-Ion)
Power consumption	1200 mA
Battery voltage	7.4 V
Battery life (max)	1.5 h
Battery recharge time	2 h

Operating relative humidity (H-H)	35 - 95 %
Storage relative humidity (H-H)	10 - 95 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
Mobile operating systems supported	Android,Windows Mobile 5,Windows Mobile 6,iOS

Width	96 mm
Depth	136 mm
Height	58 mm
Weight	442 g

Cables included	Serial

Quick start guide	Yes

Harmonized System (HS) code	84433210

Rechargeable	Yes
International Protection (IP) code	IP42
