Produktbeskrivning

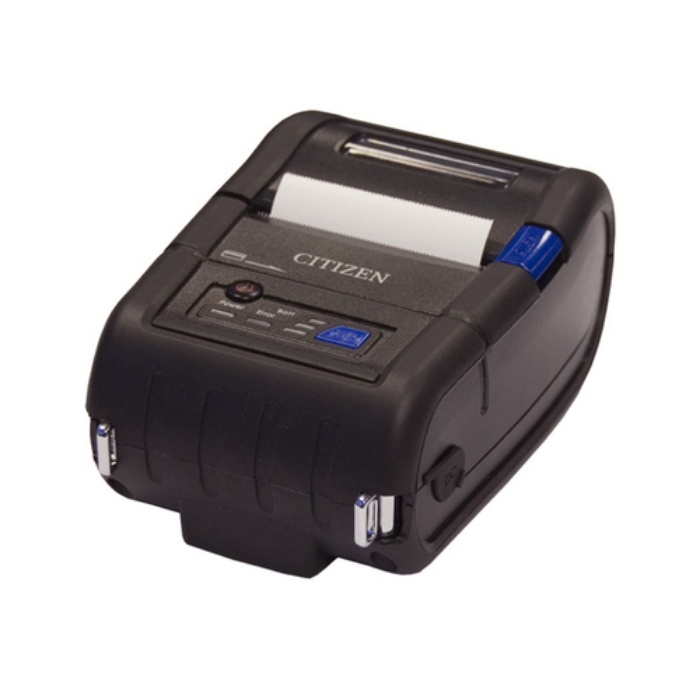

The CMP-20II mobile printer provides compact and robust printing virtually anywhere, with both Bluetooth and WiFi connectivity. Quick and simple to use, the CPM-20II is designed to save you time when printing 2 inch wide mobile receipts. Fast operation and reliable printing is assured, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.
Viktiga egenskaper
Citizen CMP-20II. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 65 µm, Maximum roll diameter: 4.8 cm, Supported paper width: 58 mm. Connectivity technology: Wired & Wireless, USB connector: Mini-USB Type-B, Standard interfaces: Serial, USB, Wireless LAN. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Security algorithms: WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK. Page description languages: CPCL-native, ESC/POS
Teknisk specifikation
Printing
| Print technology | Thermal |
|---|
| Type | Mobile printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 80 mm/sec |
|---|
Paper handling
| Maximum printing width | 48 mm |
|---|
| Supported paper width | 58 mm |
|---|
| Maximum roll diameter | 48 mm |
|---|
| Printing media thickness | 65 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB connector | Mini-USB Type-B |
|---|
| Serial interface | Yes |
|---|
| Serial ports quantity | 1 |
|---|
| Standard interfaces | Serial,USB,Wireless LAN |
|---|
Network
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g |
|---|
| Security algorithms | WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK |
|---|
Features
| Page description languages | CPCL-native,ESC/POS |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | Battery |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Battery voltage | 7.4 V |
|---|
| Power consumption | 1200 mA |
|---|
| Battery recharge time | 2 h |
|---|
| Battery life (max) | 1.5 h |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
| Operating relative humidity (H-H) | 35 - 95 % |
|---|
System requirements
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
|---|
| Mobile operating systems supported | Android,Windows Mobile 5,Windows Mobile 6,iOS |
|---|
Weight & dimensions
| Width | 96 mm |
|---|
| Depth | 136 mm |
|---|
| Height | 58 mm |
|---|
| Weight | 442 g |
|---|
Packaging data
| Cables included | Serial |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Other features
| Rechargeable | Yes |
|---|
| International Protection (IP) code | IP42 |
|---|
