Produktbeskrivning

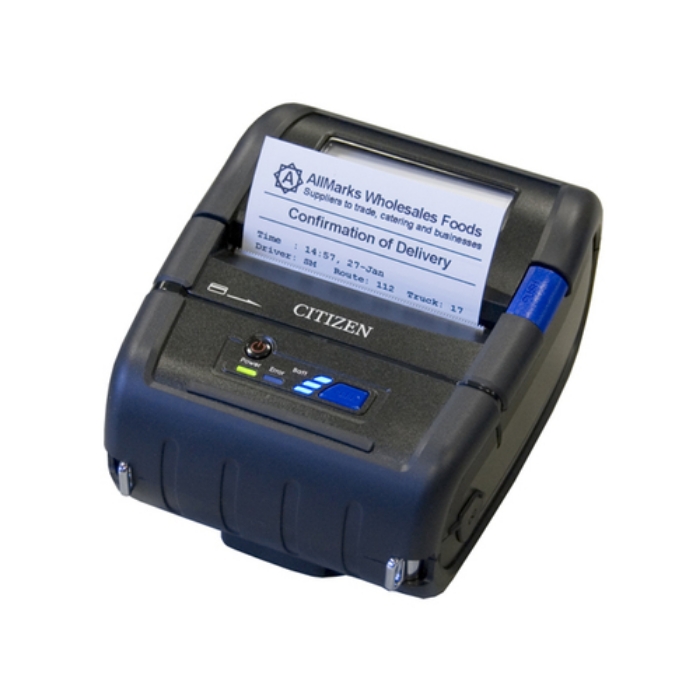

Our CMP-30II provides mobile printing options for receipts and labels up to 3 inches wide. The CMP-30II shares the same advanced Bluetooth and WiFi technology and tough construction of the smaller CMP-20II mobile printer. This ensures quick and easy printing, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.



Viktiga egenskaper

Citizen CMP-30II. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 5.6 cm, Supported paper width: 25 - 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, USB connector: Mini-USB Type-B, Standard interfaces: Bluetooth, Serial, USB. Page description languages: CPCL-native, ESC/POS, ZPL. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Print speed	100 mm/sec

Supported paper width	25 - 80 mm
Maximum roll diameter	56 mm
Maximum printing width	72 mm

Connectivity technology	Wired & Wireless
USB port	Yes
USB 2.0 ports quantity	1
USB connector	Mini-USB Type-B
Serial interface	Yes
Bluetooth	Yes
Bluetooth version	4.2
Standard interfaces	Bluetooth,Serial,USB
Serial ports quantity	1

Ethernet LAN	No
Wi-Fi	No

Page description languages	CPCL-native,ESC/POS,ZPL

Product colour	Black

Power source type	AC,Battery
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2600 mAh
Battery life (max)	1.5 h
Battery recharge time	2.5 h
Battery voltage	7.4 V
Power consumption	1200 mA

Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	35 - 95 %
Storage temperature (T-T)	-20 - 60 °C

Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
Mobile operating systems supported	Android,Windows Mobile 5,Windows Mobile 6,iOS

Width	152 mm
Depth	120 mm
Height	70 mm
Weight	630 g

Cables included	Serial

Quick start guide	Yes

Harmonized System (HS) code	84433210

Rechargeable	Yes
International Protection (IP) code	IP42
