Produktbeskrivning

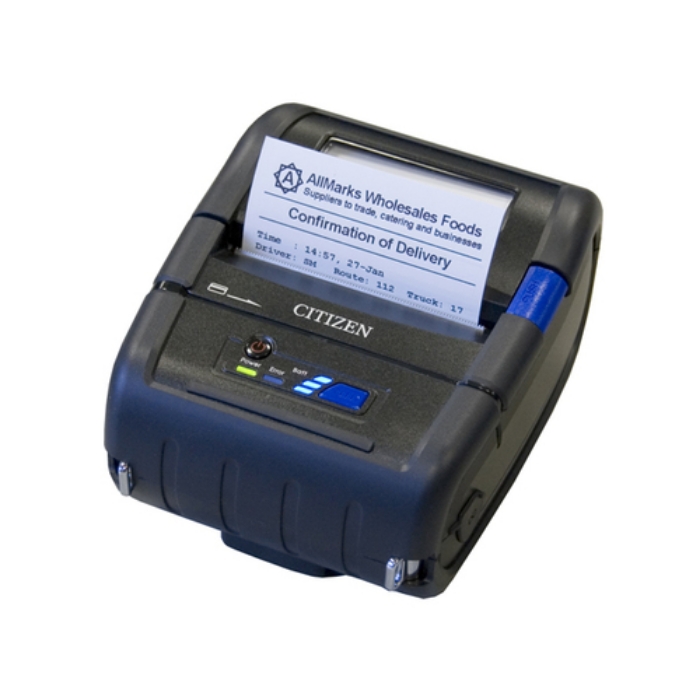

Our CMP-30II provides mobile printing options for receipts and labels up to 3 inches wide. The CMP-30II shares the same advanced Bluetooth and WiFi technology and tough construction of the smaller CMP-20II mobile printer. This ensures quick and easy printing, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.



Viktiga egenskaper

Citizen CMP-30II. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 5.6 cm, Supported paper width: 25 - 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired, USB connector: Mini-USB Type-B, Standard interfaces: Serial, USB. Page description languages: CPCL-native, ESC/POS, ZPL. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Print speed	100 mm/sec

Maximum printing width	72 mm
Maximum roll diameter	56 mm
Supported paper width	25 - 80 mm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	1
USB connector	Mini-USB Type-B
Serial interface	Yes
Standard interfaces	Serial,USB
Serial ports quantity	1

Ethernet LAN	No
Wi-Fi	No

Page description languages	CPCL-native,ESC/POS,ZPL

Product colour	Black

Power source type	Battery
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	2.5 h
Battery voltage	7.4 V
Power consumption	1200 mA
Battery life (max)	1.5 h

Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	35 - 95 %
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
Mobile operating systems supported	Android,Windows Mobile 5,Windows Mobile 6,iOS

Width	152 mm
Depth	120 mm
Height	70 mm
Weight	630 g

Cables included	Serial

Quick start guide	Yes

Harmonized System (HS) code	84433210

Rechargeable	Yes
International Protection (IP) code	IP42
