Produktbeskrivning

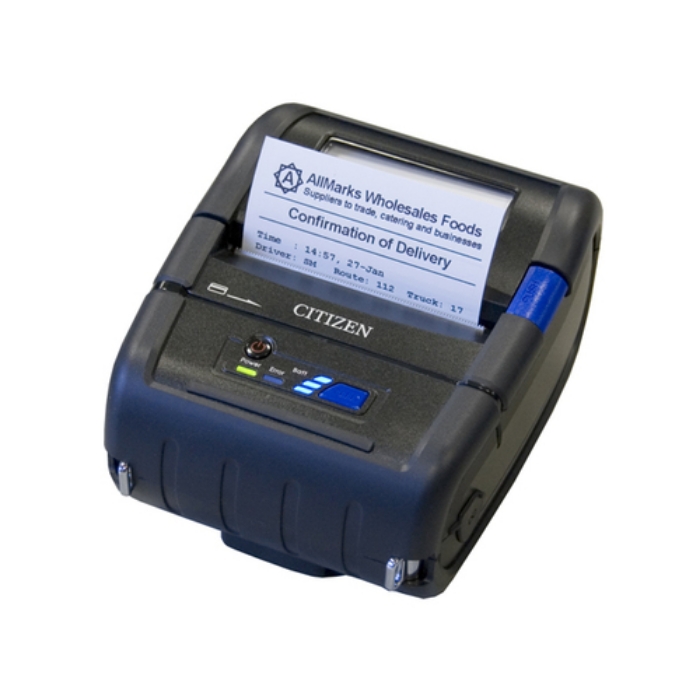

Our CMP-30II provides mobile printing options for receipts and labels up to 3 inches wide. The CMP-30II shares the same advanced Bluetooth and WiFi technology and tough construction of the smaller CMP-20II mobile printer. This ensures quick and easy printing, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.
Viktiga egenskaper
Citizen CMP-30II. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 5.6 cm, Supported paper width: 25 - 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, USB connector: Mini-USB Type-B, Standard interfaces: Serial, USB, Wireless LAN. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Security algorithms: WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK. Page description languages: CPCL-native, ESC/POS, ZPL
Teknisk specifikation
Printing
| Print technology | Thermal |
|---|
| Type | Mobile printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 100 mm/sec |
|---|
Paper handling
| Maximum printing width | 72 mm |
|---|
| Supported paper width | 25 - 80 mm |
|---|
| Maximum roll diameter | 56 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB connector | Mini-USB Type-B |
|---|
| Serial interface | Yes |
|---|
| Standard interfaces | Serial,USB,Wireless LAN |
|---|
| Serial ports quantity | 1 |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g |
|---|
| Security algorithms | WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK |
|---|
Features
| Page description languages | CPCL-native,ESC/POS,ZPL |
|---|
Design
| Product colour | Black |
|---|
Power
| Power source type | Battery |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery voltage | 7.4 V |
|---|
| Battery recharge time | 2.5 h |
|---|
| Power consumption | 1200 mA |
|---|
| Battery life (max) | 1.5 h |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 35 - 95 % |
|---|
| Operating temperature (T-T) | -10 - 50 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
System requirements
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
|---|
| Mobile operating systems supported | Android,Windows Mobile 5,Windows Mobile 6,iOS |
|---|
Weight & dimensions
| Width | 152 mm |
|---|
| Depth | 120 mm |
|---|
| Height | 70 mm |
|---|
| Weight | 630 g |
|---|
Packaging data
| Cables included | Serial |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Other features
| Rechargeable | Yes |
|---|
| International Protection (IP) code | IP42 |
|---|
