Produktbeskrivning

- High-speed printing at up to 300 mm/sec possible
- Stylish design
- Compact size with the lowest possible height
- The front paper eject structure enables use where the height is restricted
- Compliant with IPX1 for drip-proof capabilities
- Support for paper widths of 80 mm and 58 mm
- High-speed cutter employed
- Long Life Printing (LLP) function to increase the head life available
- USB interface included as standard
- Interchangeable interface board
- Printer status and errors indicated by five LEDs
- Built-in drawer kick interface
- USB-linked power OFF function available
- 16 level greyscale and clear printing
- Paper saving function available
- Support for the JIS X0213 third and fourth level Kanji character sets
- Support for the simplified and traditional Chinese character sets and Hangul character set
- Support for UTF-8 using commands
- Various customizations using the memory switches possible
- User created characters and logos can be saved in the user memory
- Support for barcodes including 2D barcodes



Viktiga egenskaper

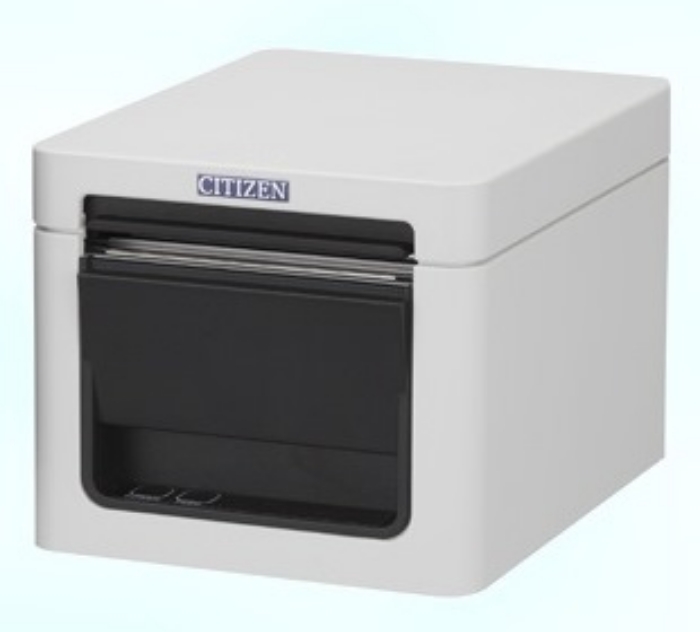

Citizen CT-E651. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 53 - 85 µm, Maximum roll diameter: 8.3 cm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, Bluetooth version: 3.0+HS. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, ITF, PDF417, QR..., Internal memory: 0.375 MB, Certification: UL, C-UL, FCC Cl. A, CE. Product colour: White



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	300 mm/sec
Character size	1.5 x 3 mm
Character sets	Katakana,PC437,PC850,PC858,PC860,PC863,Thai code 18,WPC1252

Maximum roll diameter	83 mm
Maximum printing width	72 mm
Printing media thickness	53 - 85 µm

Connectivity technology	Wired & Wireless
USB port	Yes
USB 2.0 ports quantity	1
Bluetooth	Yes
Bluetooth version	3.0+HS

Ethernet LAN	No
Wi-Fi	No

Built-in barcodes	CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,ITF,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.375 MB
Certification	UL, C-UL, FCC Cl. A, CE

Product colour	White

Power source type	DC
Power consumption (printing)	50 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.1 A

Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Width	125 mm
Depth	165 mm
Height	108 mm
Weight	1300 g

Cables included	AC

AC adapter included	Yes
Quick start guide	Yes

Harmonized System (HS) code	84433210

Voltage	24 V

Buffer size	4 KB
LED indicators	Power
