Produktbeskrivning

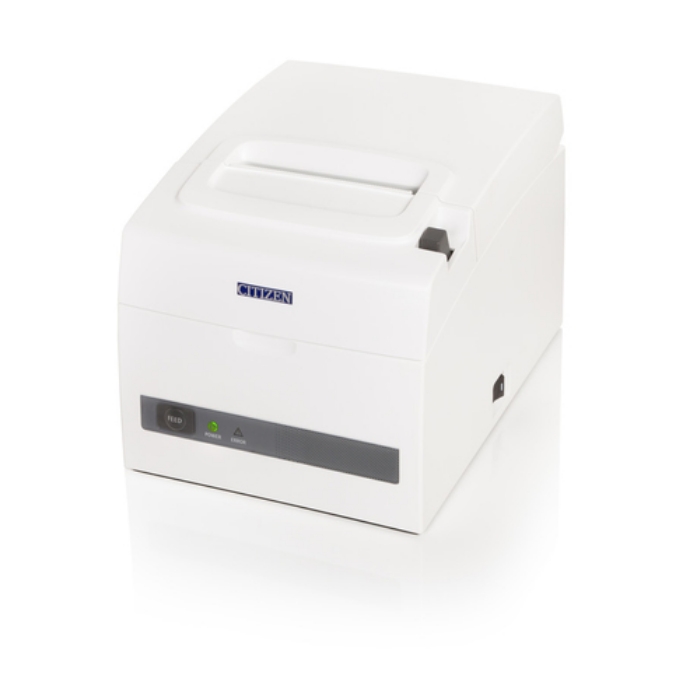

The industry-leading CT-S310II is a compact and advanced receipt and bar code printer. Featuring an ENERGY STAR® power supply, paper-save function, halogen-free housing and packaging produced from recycled materials, the CT-S310II is truly environmentally friendly. With an easy maintenance cutter and patented long life printing (LLP) technology, capable of extending print life to over 200km, the CT-S310II offers the ultimate combination of performance and energy efficiency.
Viktiga egenskaper
Citizen CT-S310II. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 65-75/75/85 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 58/80 mm. Connectivity technology: Wired. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, PDF417, QR Code,..., Page description languages: ESC/POS, Autocutter durability: 2 million cuts. Product colour: White
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 160 mm/sec |
|---|
| Character size | 1.5 x 3 mm |
|---|
| Character sets | Katakana,PC437,PC850,PC858,PC865,Thai code 18,WPC1252 |
|---|
Paper handling
| Maximum printing width | 72 mm |
|---|
| Supported paper width | 58/80 mm |
|---|
| Maximum roll diameter | 83 mm |
|---|
| Printing media thickness | 65-75/75/85 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Serial ports quantity | 1 |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
Features
| Built-in barcodes | CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Page description languages | ESC/POS |
|---|
| Cutter | Yes |
|---|
| Autocutter durability | 2 million cuts |
|---|
| Ribbon life | 300 million characters |
|---|
| Certification | UL, C-UL, FCC Class A, TUV-GS, CE marking, VCCI |
|---|
Design
| Product colour | White |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (printing) | 40 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 47/63 Hz |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
|---|
Weight & dimensions
| Width | 140 mm |
|---|
| Depth | 195 mm |
|---|
| Height | 132 mm |
|---|
| Weight | 1900 g |
|---|
Packaging data
| Cables included | AC |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| Drivers included | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| LED indicators | Yes |
|---|
| Buffer size | 4 KB |
|---|
