Produktbeskrivning

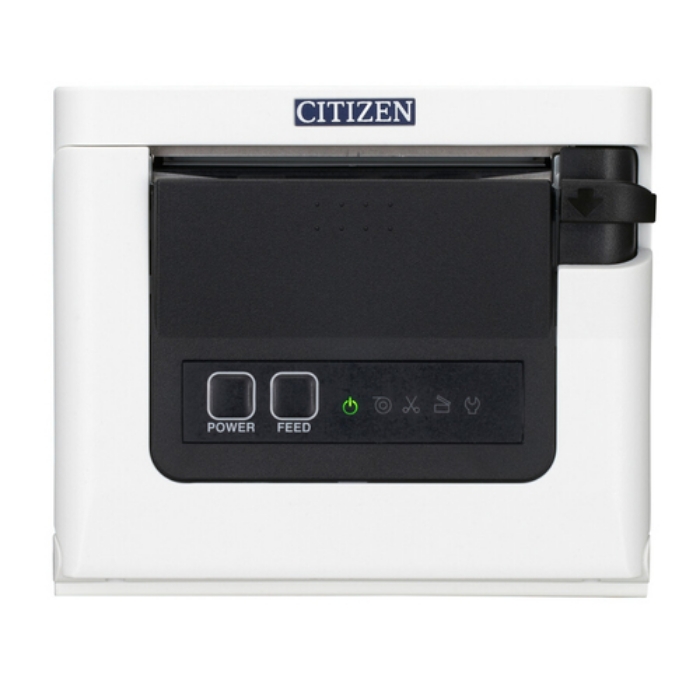

Ultra-fast POS printer with under counter mounting
The CT-S751 3-inch, front-loading POS printer produces direct thermal prints at an outstanding 350mm/sec in 203 dpi. Its modern design, premium functionality and seamless integration into mPOS systems makes it the perfect printer to meet the challenges of retail and hospitality industries. Available in black or white and with a small footprint and simple front-loading capabilities, the CT-S751 fits effortlessly into tight spaces and allows for tidy working areas. The printer can be placed under a counter to match the heights of a cash drawer or can be securely mounted with an optional bracket.
Viktiga egenskaper
Citizen CT-S751. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 53 - 85 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 55 - 80 mm. Connectivity technology: Wired & Wireless, Standard interfaces: Ethernet, USB 2.0, Wireless LAN. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, PDF417, QR Code,..., Page description languages: ESC/POS, Flash memory: 8 MB. Product colour: White
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print columns | 72 dots/line |
|---|
| Print speed | 350 mm/sec |
|---|
| Character sets | 852,857,863,864,866,Katakana,PC852,PC863,PC866,Thai code 18 |
|---|
Paper handling
| Maximum roll diameter | 83 mm |
|---|
| Supported paper width | 55 - 80 mm |
|---|
| Maximum printing width | 72 mm |
|---|
| Printing media thickness | 53 - 85 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| USB port | Yes |
|---|
| Standard interfaces | Ethernet,USB 2.0,Wireless LAN |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
Features
| Built-in barcodes | CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Page description languages | ESC/POS |
|---|
| Flash memory | 8 MB |
|---|
| Cutter | Yes |
|---|
| Certification | CE, UL, C-UL, FCC, VCCI |
|---|
Design
| Product colour | White |
|---|
Power
| Power source type | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
|---|
Weight & dimensions
| Width | 125 mm |
|---|
| Depth | 170 mm |
|---|
| Height | 108 mm |
|---|
| Weight | 1260 g |
|---|
Packaging data
| Cables included | AC,USB |
|---|
Packaging content
| Quick start guide | Yes |
|---|
| AC adapter included | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Other features
| LED indicators | Yes |
|---|
| Buffer size | 4 KB |
|---|
