Produktbeskrivning

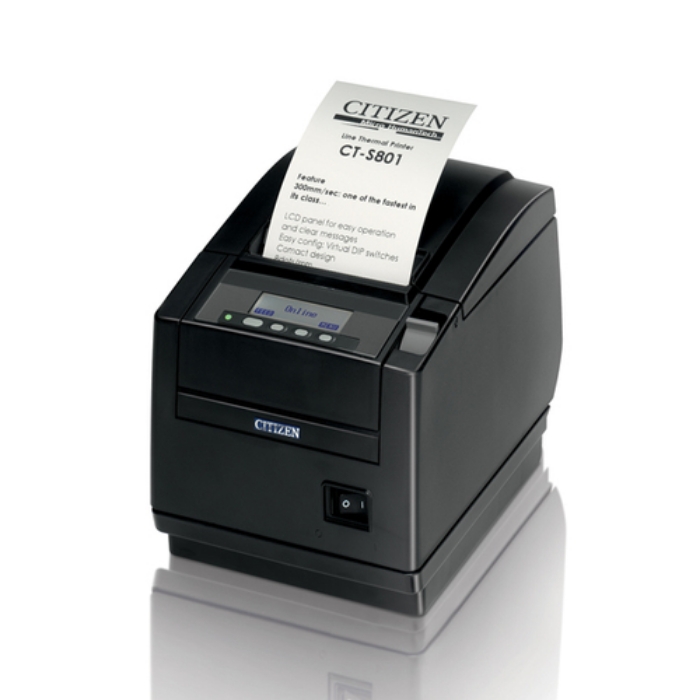

With a print speed of 300mm/sec, the CT-S801II originally set the standard for high speed POS printing and is still among the fastest machines in its class. Offering a top paper exit for retail applications, the CT-S801II has an advanced, two-colour backlit LCD, ensuring quick setup and total control of all print functions. Full error checking, with simple messages and on-screen help make operation fast and efficient - a benefit that is extended still further through features such as a soft-close cover and the self-retracting snap-in cutter.
Viktiga egenskaper
Citizen CT-S801II. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 65-75/75-150 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80/83 mm. Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, PDF417, QR Code, UPC-A, UPC-E, Flash memory: 0.384 MB, Autocutter durability: 2 million cuts. Product colour: Black, Display: LCD. Power source type: DC, Power consumption (printing): 45 W, AC input voltage: 100 - 240 V
Teknisk specifikation
Printing
| Print technology | Direct thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 300 mm/sec |
|---|
| Character size | 1.5 x 3 mm |
|---|
| Character sets | Katakana,PC437,PC850,PC858,PC860,PC863,PC865,Thai code 18,WPC1252 |
|---|
Paper handling
| Supported paper width | 80/83 mm |
|---|
| Maximum roll diameter | 83 mm |
|---|
| Printing media thickness | 65-75/75-150 µm |
|---|
Network
| Ethernet LAN | No |
|---|
| Wi-Fi | No |
|---|
Features
| Built-in barcodes | CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,PDF417,QR Code,UPC-A,UPC-E |
|---|
| Flash memory | 0.384 MB |
|---|
| Cutter | Yes |
|---|
| Autocutter durability | 2 million cuts |
|---|
| Ribbon life | 200 million characters |
|---|
| Certification | UL, C-UL, FCC A, TUV-Bauart, CE |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
Power
| Power source type | DC |
|---|
| Power consumption (printing) | 45 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 45 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
System requirements
| Windows operating systems supported | Windows 2000,Windows Vista,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
|---|
Weight & dimensions
| Width | 145 mm |
|---|
| Depth | 192 mm |
|---|
| Height | 148 mm |
|---|
| Weight | 2000 g |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Buffer size | 4 KB |
|---|
