Produktbeskrivning

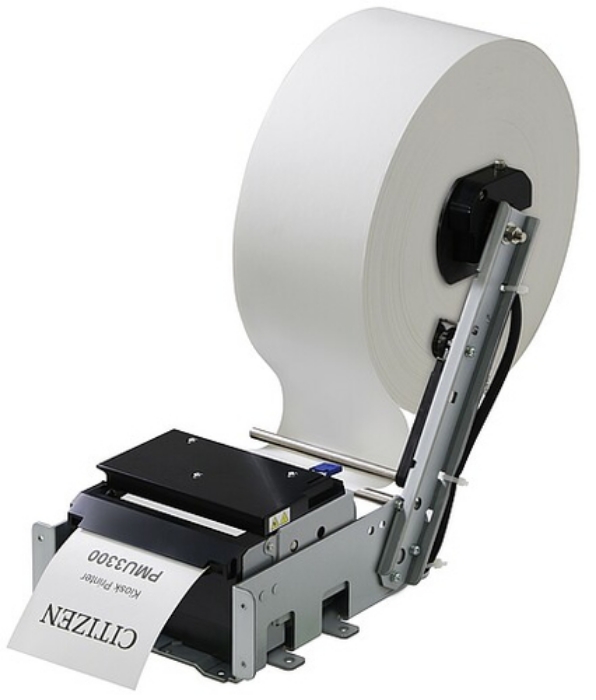

The unique PMU3300 is a compact thermal printer designed for integration into demanding kiosk applications. It features side opening for easy loading, a vandal proof design for ultimate reliability, and its low space requirement makes it ideal for small spaces and enables easy mounting. It also combines 203 dpi resolution, high speed 150mm/sec printing, and a choice of 2 or 3 inch paper widths. Furthermore, since its operating temperatures are between -15 to +65 degrees Celsius, the tough PMU3300 is ideal for all kiosks regardless of extreme temperatures experienced in a wide range of environments.



Viktiga egenskaper

Citizen PMU3300. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 75 µm, Maximum roll diameter: 20.3 cm, Supported paper width: 72 mm. Connectivity technology: Wired, Serial interface type: RS-232C. Built-in barcodes: Code 93, Code-128 Codabar Library, Code-39 Library, EAN13, GS1 DataBar Expanded, PDF417, QR Code,..., Autocutter durability: 100 million cuts, Print head life: 50 km. Product colour: Silver



Teknisk specifikation

Print technology	Direct thermal
Type	POS printer
Colour	No
Maximum resolution	203 x 203 DPI
Print columns	72 dots/line
Print speed (receipt)	150 mm/sec

Supported paper width	72 mm
Maximum roll diameter	203 mm
Printing media thickness	75 µm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
Serial interface type	RS-232C

Wi-Fi	No

Built-in barcodes	Code 93,Code-128 Codabar Library,Code-39 Library,EAN13,GS1 DataBar Expanded,PDF417,QR Code,UPC-A,UPC-E
Cutter	Yes
Autocutter durability	100 million cuts
Print head life	50 km
Safety	CE UL FCC FCC class A FCC class B

Product colour	Silver

Power source type	DC
AC input voltage	24 V

Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-15 - 65 °C

Width	108 mm
Depth	138 mm
Height	73 mm
Weight	675 g
