Crestron - Monteringssats (skydd, självhäftande bakre hölje, kanal med häftande baksida (3 sektioner)) - flera ytor - för pekskärm - plast - smooth black - monterbar på ytor, glasmonterad - för Crestron TS-1070-B-S
Tillverkare: CRESTRON ELECTRONICS
Artikelnr: 6752297A
Tillverkarens artikelnummer: TSW-1070-MSMK-B-S
EAN: 8592978328207
Leverera till
*
*
Leveranssätt
Namn
Beräknad leverans
Pris
Inga leveransalternativ
Lagerstatus: Ej i lager
Prel. åter i lager: 2024-04-09
1 059,00 kr
decrease increase

Produktbeskrivning


The TSW-1070-MSMK multisurface mount kit provides a versatile surface mounting solution for a TSW‑1070 or TSS‑1070 series touch screen. Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. TSW-1070-MSMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW‑1070‑LB light bar to provide a clear indication of the room availability status.

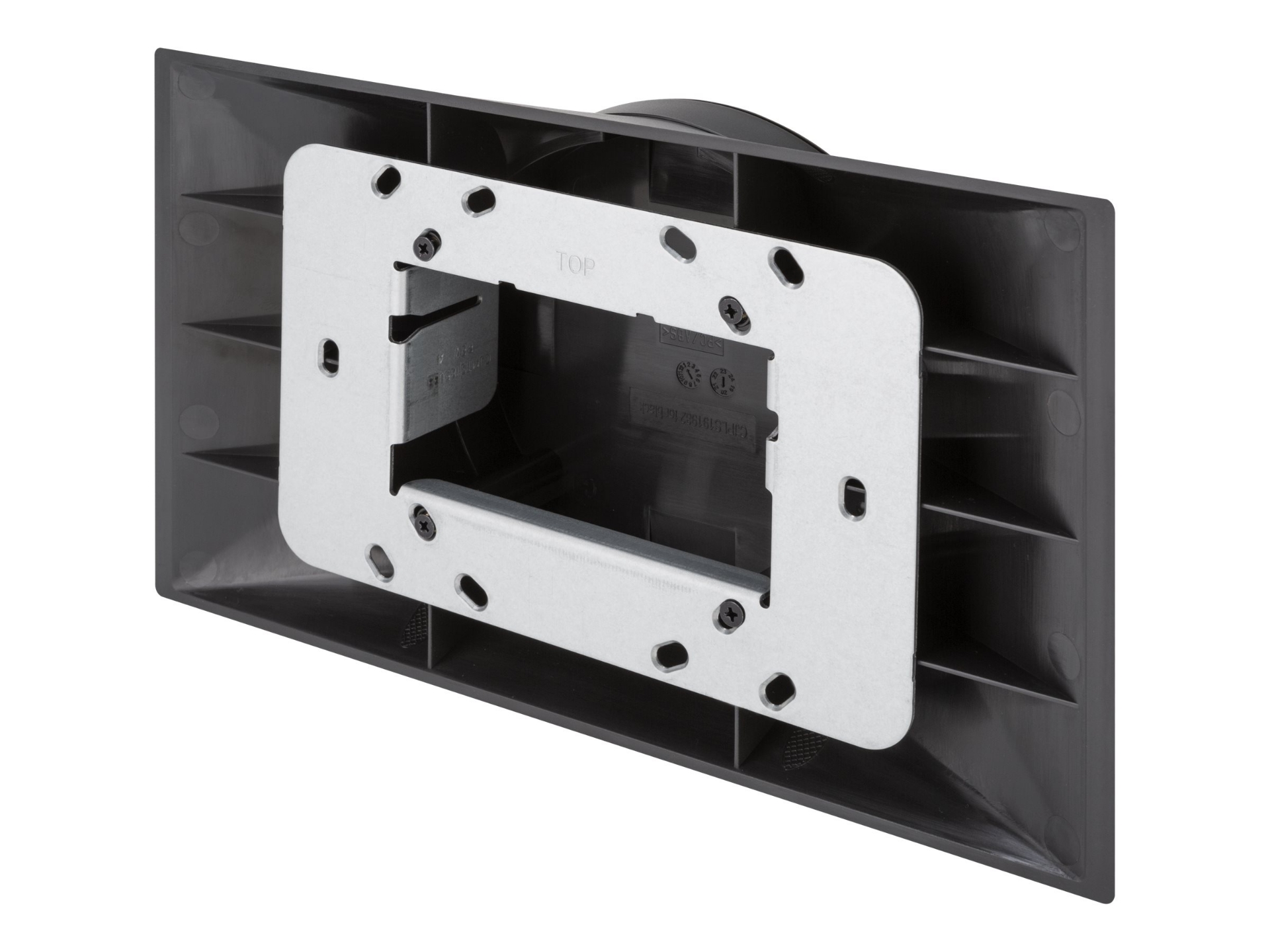

The TSW-1070-MSMK attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive molded plastic cap is provided, which simply affixes to the opposite side of the glass behind the unit. Templates are provided for the MSMK and the plastic cap to help ensure that both are level and properly aligned with the surface.

The TSW-1070-MSMK comes complete with a self‑adhering plastic raceway for use on smooth surfaces, which conceals cables running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion. The raceway is paintable and is composed of three 3 ft (0.91 m) sections, as well as an assortment of elbows and couplings.

The TSW-1070-MSMK rear housing provides four cutout holes (on the top, bottom, and sides of the housing) for running concealed cables to the touch screen using the included adhesive‑backed raceway. A plastic cover with an opening for the raceway is attached to the rear housing to conceal any unused cutouts.




Egenskaper


● Permits flush mounting a TSW‑1070 or TSS‑1070 series touch screen to virtually any flat, smooth surface
● Ideal for mounting at the entrance to a meeting space for room scheduling applications
● Supports glass surface and partition mounting
● Secure, screwless installation using the peel‑and‑stick adhesive rear housing
● Provides an assortment of raceway to conceal wiring




Teknisk specifikation


Allmänt
Bredd21.9 cm
Djup4.3 cm
Höjd12.8 cm
Vikt150 g
MaterialPlast
FärgSmooth black
Förpackningens innehåll2 raka kanalkopplingar, 2 platta kanalvinklar (90°), innerkurva för kanal, yttre kanalkrök
AV-komponenter
TypMonteringssats
MonteringskomponenterSkydd, självhäftande bakre hölje, kanal med häftande baksida (3 sektioner)
DesignFlera ytor
Rekommenderad användningPekskärm
Placering/MonteringMonterbar på ytor, glasmonterad
Detaljerad informationStående orientering
Mått och vikt (komponenter)
DimensionerHus - bredd: 21.9 cm, djup: 4.3 cm, höjd: 12.8 cm
Kanal (rak sektion) - bredd: 1.96 cm, djup: 1.17 cm, höjd: 91 cm
Kompatibilitetsinformation
Designat förCrestron TS-1070-B-S
