Produktbeskrivning

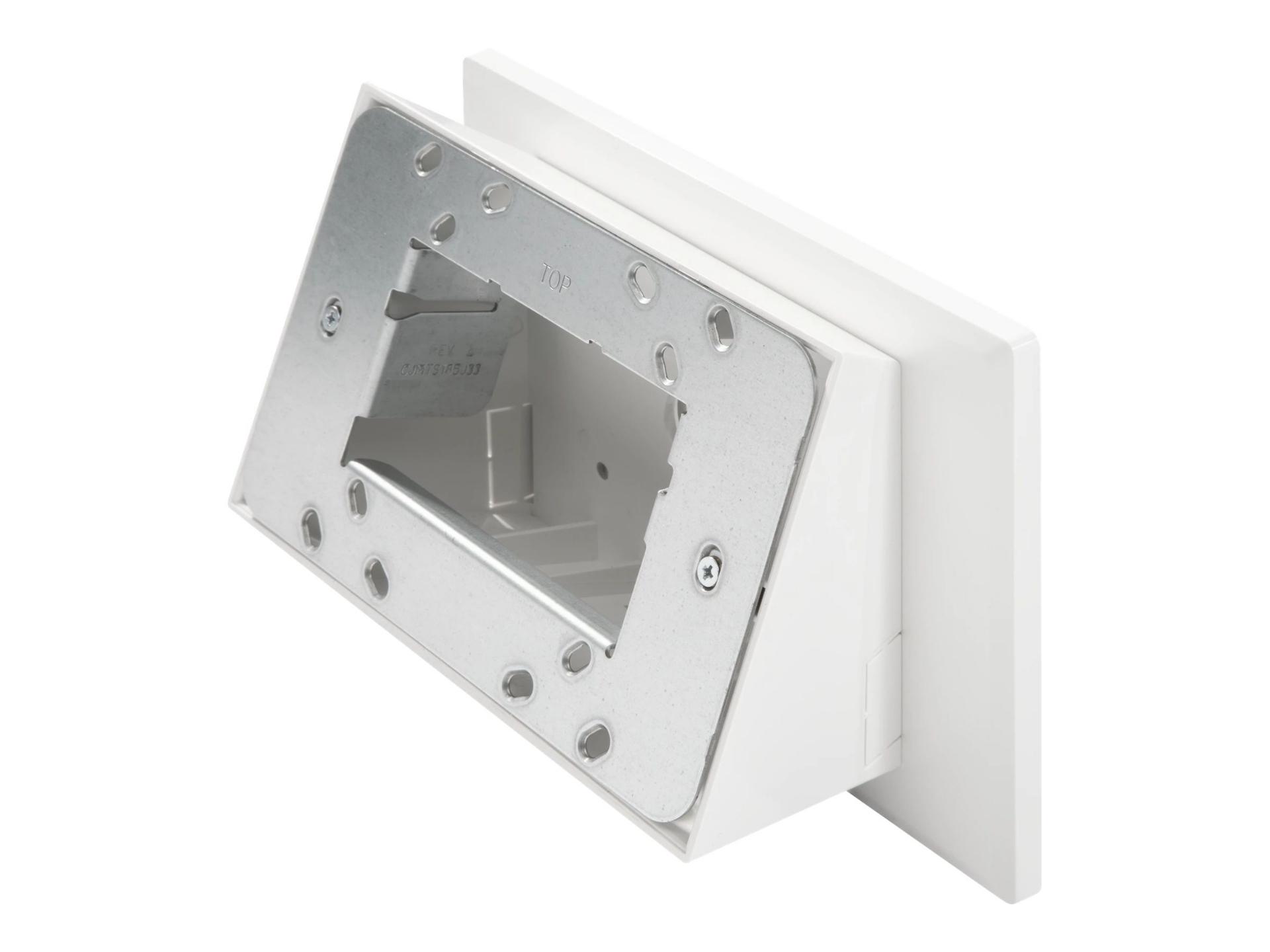

The TSW-770/1070-MSMK-ANG multi-surface mount kit provides a versatile mounting solution for a TSW-770, TSS-770, TSW-1070, or TSS-1070 touch screen. Using the kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The touch screen can also be mounted into wall or supported electrical boxes. The TSW-770/1070-MSMK-ANG is ideal for mounting near the entrance to a meeting space for room scheduling applications. When installed, the touch screen is angled upwards at a 20° tilt.

The TAA compliant TSW-770/1070-MSMK-ANG attaches securely to a flat, smooth surface without screws using the included peel-and-stick adhesive pad or attaches to a wall or an electrical box using the screws provided. For a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which affixes to the opposing side of the glass behind the unit. Cables may be run through the back of the unit (wall mount only) or through one of the raceway knockouts located on the bottom or either side of the unit.



Egenskaper

● Enables mounting a TSW‑770, TSS‑770, TSW‑1070, or TSS‑1070 series touch screen to glass or another flat smooth surface, into a wall, or over an electrical box
● Ideal for mounting near the entrance to a meeting space for room scheduling applications
● Provides a 20° upward tilt angle
● Secure, screwless installation using peel-and-stick adhesive pad



Teknisk specifikation

Material	Plast
Färg	Smooth white

Typ	Monteringssats
Monteringskomponenter	Hölje, vinklad montering
Design	Flera ytor
Rekommenderad användning	Pekskärm
Placering/Montering	Monterbar på ytor, monterad i väggen, glasmonterad
Kabelhantering	Inbyggd kabelhantering
Lutning	20°
Justeringar	Lutning

Dimensioner	Ytmontering - bredd: 15.1 cm, djup: 6.3 cm, höjd: 11.3 cm Väggmontering - bredd: 17 cm, djup: 7 cm, höjd: 13 cm

Designat för	Crestron TSW-1070-MSMK-B-S, TSW-1070-MSMK-W-S Crestron Touch Screen TSW-770-B-S, TSW-770-W-S
