Produktbeskrivning

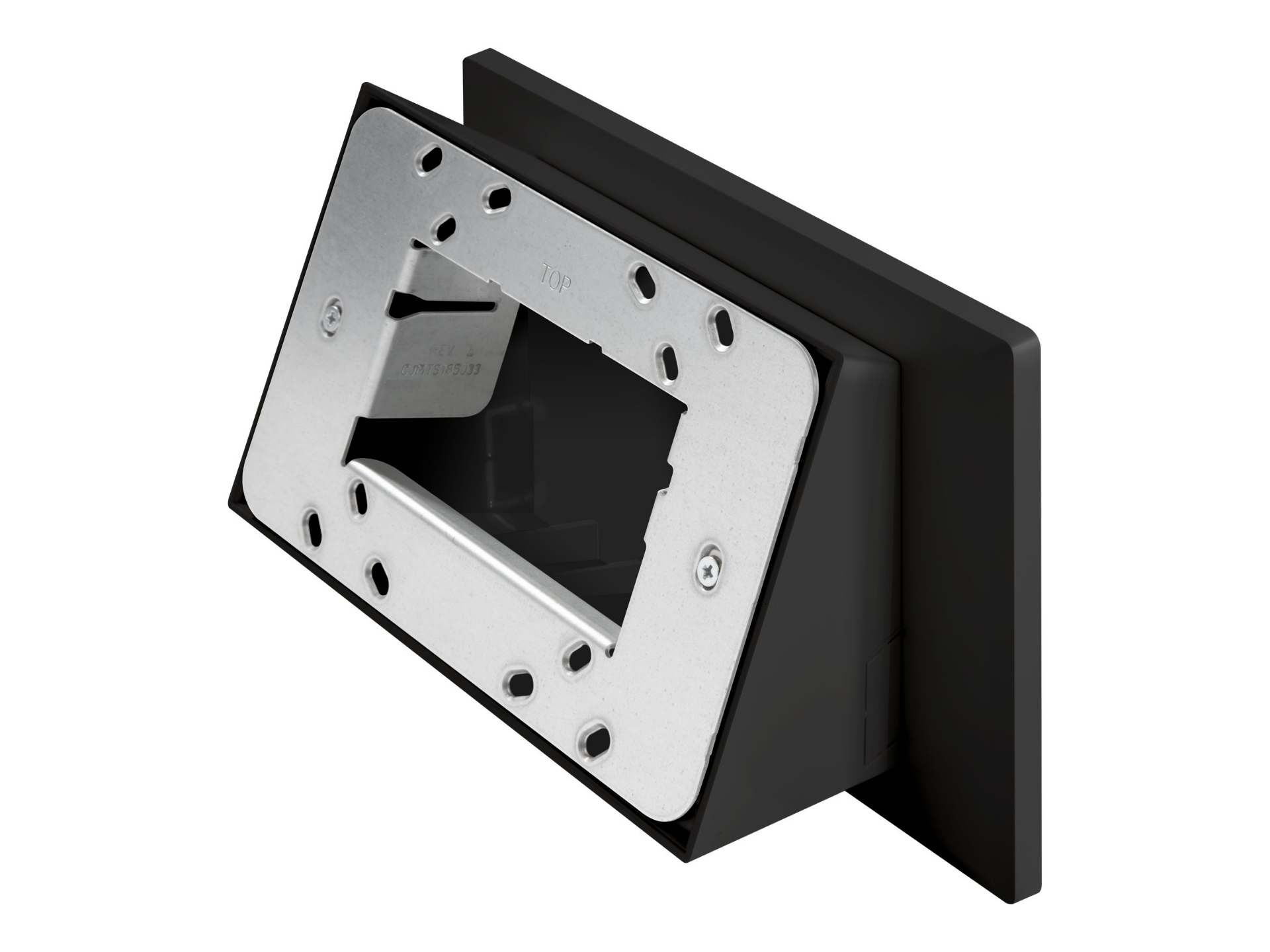

The TSW-770/1070-MSMK-ANG multi-surface mount kit provides a versatile mounting solution for a TSW-770, TSS-770, TSW-1070, or TSS-1070 touch screen. Using the kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. The touch screen can also be mounted into wall or supported electrical boxes. The TSW-770/1070-MSMK-ANG is ideal for mounting near the entrance to a meeting space for room scheduling applications. When installed, the touch screen is angled upwards at a 20° tilt.
The TAA compliant TSW-770/1070-MSMK-ANG attaches securely to a flat, smooth surface without screws using the included peel-and-stick adhesive pad or attaches to a wall or an electrical box using the screws provided. For a finished appearance when mounted to a transparent glass wall, a cosmetic label is provided, which affixes to the opposing side of the glass behind the unit. Cables may be run through the back of the unit (wall mount only) or through one of the raceway knockouts located on the bottom or either side of the unit.
Teknisk specifikation
Allmänt
| Material | Plast |
|---|
| Färg | Smooth black |
|---|
| Förpackningens innehåll | Monteringsutrustning |
|---|
AV-komponenter
| Typ | Monteringssats |
|---|
| Monteringskomponenter | Konsol, 2 ytplåtar, vinklat monteringsfäste, häftande dyna |
|---|
| Design | Flera ytor |
|---|
| Rekommenderad användning | Pekskärm |
|---|
| Placering/Montering | Monterbar på ytor, monterad i väggen, glasmonterad |
|---|
| Kabelhantering | Inbyggd kabelhantering |
|---|
| Lutning | 20° |
|---|
| Justeringar | Lutning |
|---|
Mått och vikt (komponenter)
| Dimensioner | Ytmontering - bredd: 15.1 cm, djup: 6.3 cm, höjd: 11.3 cm
Väggmontering - bredd: 17 cm, djup: 7 cm, höjd: 13 cm |
|---|
Kompatibilitetsinformation
| Designat för | Crestron TSW-1070-MSMK-B-S, TSW-1070-MSMK-W-S, TSW-770/1070-MUMK-B
Crestron Room Scheduling Touch Screen TSS-1070-B-S, TSS-1070-B-S-LB KIT, TSS-1070-T-B-S-LB KIT, TSS-1070-T-W-S-LB KIT, TSS-1070-W-S, TSS-1070-W-S-LB KIT, TSS-770-B-S, TSS-770-B-S-LB KIT, TSS-770-W-S, TSS-770-W-S-LB KIT
Crestron Touch Screen TSW-770-B-S, TSW-770-W-S
Crestron TSS-770 Series TSS-770-T-B-S-LB KIT, TSS-770-T-W-S-LB KIT |
|---|
