Produktbeskrivning
A point-to-point signal extender for HDMI, USB 2.0, RS-232, IR, and Ethernet signals.

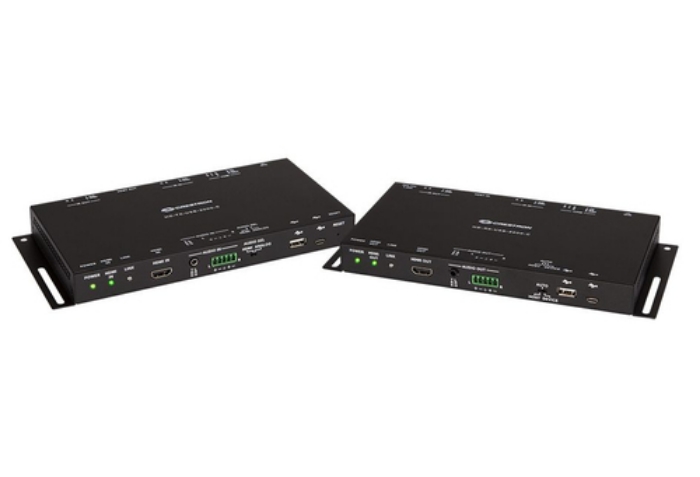

The HD-EXT-USB-2000-C is a point-to-point signal extender for HDMI, USB 2.0, RS-232, IR, and Ethernet signals. Analog audio input and/or output signals are also supported in combination with HDMI video. The HD-EXT-USB-2000-C is ideal for use with a single HD or UHD display device and USB camera to extend the signal wiring from an AV media source, computer, central equipment cabinet, or Crestron Mercury Tabletop Conference System.
The extender is composed of a compact transmitter and receiver pair, which may be installed up to 330 feet (100 meters) apart (depending on the video resolution and wire type). Video, audio, control, and LAN signals are all transported through a single CAT type cable (not included) using HDBaseT technology.
Viktiga egenskaper
Crestron HD-EXT-USB-2000-C. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Material: Metal. Connectivity technology: Wired, USB connector type: Micro-USB B. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Output current: 1.25 A. Receiver dimensions (WxDxH): 244 x 25 x 114 mm, Receiver weight: 776 g, Transmitter dimensions (WxDxH): 244 x 25 x 114 mm
Teknisk specifikation
Features
| Type | AV transmitter & receiver |
|---|
| Maximum resolution | 4096 x 2160 pixels |
|---|
| Material | Metal |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Ethernet LAN | Yes |
|---|
| RJ-45 input ports | 1 |
|---|
| Number of HDMI outputs | 1 |
|---|
| HDMI in | 1 |
|---|
| USB ports quantity | 1 |
|---|
| USB version | 2.0 |
|---|
| USB connector type | Micro-USB B |
|---|
| 3.5 mm (1/8-inch) in | Yes |
|---|
| Remote (IR) input | 1 |
|---|
| Remote (IR) output | 1 |
|---|
Power
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Output current | 1.25 A |
|---|
| Power consumption (typical) | 18.7 W |
|---|
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Weight & dimensions
| Receiver dimensions (WxDxH) | 244 x 25 x 114 mm |
|---|
| Receiver weight | 776 g |
|---|
| Transmitter dimensions (WxDxH) | 244 x 25 x 114 mm |
|---|
| Transmitter weight | 776 g |
|---|
