Produktbeskrivning

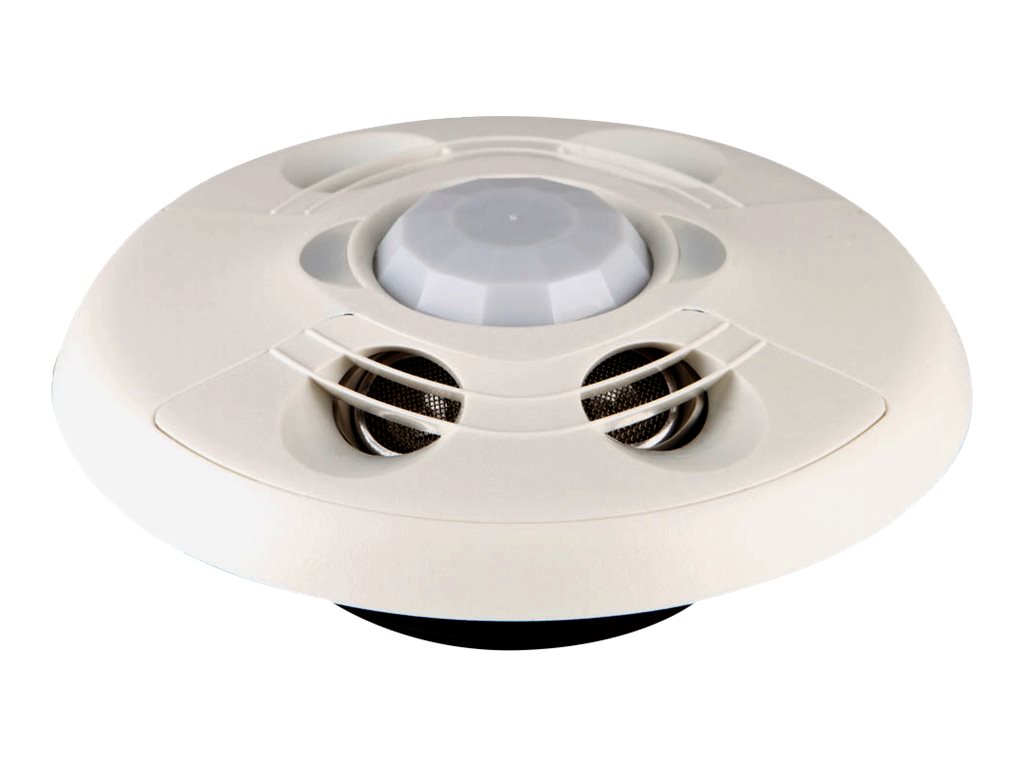

The TAA compliant CEN-ODT-C-POE is a low-profile, ceiling-mounted occupancy sensor that features passive infrared (PIR) and ultrasonic (US) motion detection technology. The CEN-ODT-C-POE is designed for areas up to 2,000 square feet, making it great for use in large spaces such as auditoriums, warehouses, and building lobbies. It is an effective solution for reducing energy consumption and enhancing the functionality of lighting and environmental systems. A single-wire Ethernet connection allows the CEN-ODT-C-POE to report to the Crestron XiO Cloud service when no control system is in place. Crestron XiO Cloud integration allows for device configuration, occupancy status reporting, and online/offline status.
Egenskaper
Dual-technology occupancy sensingAchieving consistent and dependable occupancy sensing is accomplished using a combination of ultrasonic (US) and passive infrared (PIR) sensing technologies. Ultrasonic motion detection is highly sensitive to small movements over a large area, while passive infrared sensing ensures superior immunity to false triggers from vibrations, inanimate objects, or movement in an adjacent corridor.
Enterprise-grade securityCrestron employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization's network policies. Cloud‑based provisioning and management streamlines the process of configuring, monitoring, and updating every device on the network.
Walk-through modeWalk-through mode prevents the lights from remaining on for a long period when someone quickly enters and then leaves a room. The sensor enters walk-through mode when it detects occupancy for less than 90 seconds. When walk-through mode is activated, the sensor indicates that the room is vacant after 60 seconds.
Grace occupancy featureWhen the lights turn off in a room programmed to vacancy only mode, a 15-second grace period starts during which the room lights can be turned on again by simply waving a hand to trigger the sensor.
Versatile installationThe CEN-ODT-C-POE achieves a discreet, nearly hidden appearance when installed on a typical drywall or droptile ceiling. Hardware is included for fast and simple mounting in a standard 4-in. octagon box or in a hole created with the help of the provided cutout template.
Teknisk specifikation
Allmänt
Produkttyp | Närvarosensor |
Sensortyp | Rörelse |
Strömkälla | PoE |
Anslutningsteknik | Kabelansluten - Ethernet, Fast Ethernet |
Interfaces Details | LAN/ström |
Funktioner | Takmonterbar, LED-indikatorer, PoE |
Rörelsesensor
Detekteringsläge | Psssivt infraröd (PIR), Ultrasonic 40 kHz |
Detektionsvinkel | 360 grader |
Detektionstäckning | 186 m² |
Diverse
Produktmaterial | Plast |
Färg | Vit |
Energiförbrukning vid drift | 4 Watt |
Standarder som följs | C-Tick, IC, FCC, UL 60730-1, IEEE 802.3af |
Mått och vikt
Bredd | 12.2 cm |
Djup | 12.2 cm |
Höjd | 8.1 cm |
Vikt | 240 g |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
