Produktbeskrivning

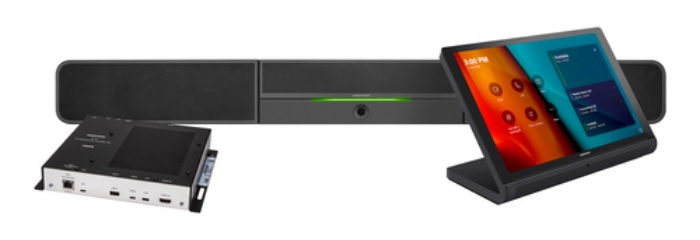

The UC-BX30-T-GV Crestron Flex advanced tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a tabletop touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables. The UC-BX30-T-GV is a TAA-compliant conference solution that is suitable for government deployments.

Native Microsoft Teams® Rooms Experience

The UC-BX30-T-GV system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070-GV-B-S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

High‑Definition Video Conferencing with Impressive Audio

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Crestron Control System Integration

The UC-BX30-T-GV can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.2

Bring Your Own Device (BYOD)

Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected. For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud® service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Dual Control Option

A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.



Viktiga egenskaper

Crestron UC-BX30-T-GV. Product type: Personal video conferencing system, Number of persons: 1 person(s). Sensor type: CMOS. HD type: HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Display: LCD, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Personal video conferencing system
Number of persons	1 person(s)
On Screen Display (OSD) languages	English
Product colour	Black

HD type	HD
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Number of speakers	1
Audio system full duplex	Yes
Frequency range	80 - 20000 Hz
Output level	91/1 dB
Noise reduction	Yes
Microphone pick-up range	4.6 m
RMS rated power	20 W

Microphone in	Yes

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Cable standard	Cat5
Security algorithms	SRTP,SSH,SSL/TLS

Megapixel (approx.)	12 MP
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °

Built-in display	Yes
Display	LCD
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Computer system type	Mini PC
VESA mounting	Yes
Windows operating systems supported	Windows 11

Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Current	3.75 A
Power consumption (typical)	90 W

Width	1107 mm
Depth	99 mm
Height	118 mm
Weight	6200 g

Cables included	DisplayPort to HDMI,HDMI,LAN (RJ-45),USB Type-A to Micro USB Type-B
Power cable length	1.8 m
HDMI cable length	1.8 m
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Manual	Yes
Camera included	Yes
Screws included	Yes
Quick start guide	Yes
Microphone included	Yes
