Produktbeskrivning

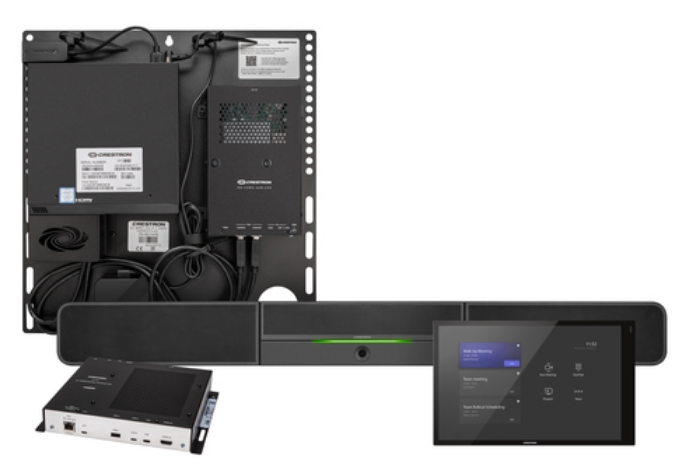

The UC-BX30-T-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Microsoft Teams Rooms software. It supports single or dual video displays1 (not included) and features a wall mount touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.

Native Microsoft Teams Rooms Experience
The UC-BX30-T-WM system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Wall Mount Options
Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

High‑Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Crestron Control System Integration
The UC-BX30-T-WM can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.4 For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron hardware, expedited advance replacements, and a discounted rate for on-site support.

Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2, 3

Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.



Viktiga egenskaper

Crestron UC-BX30-T-WM. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Product colour	Black

HD type	Full HD
Supported video modes	1080p
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Number of speakers	2
Frequency range	80 - 20000 Hz
RMS rated power	40 W

Line-out	Yes
Line-in	Yes

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP

Megapixel (approx.)	12 MP
Effective sensor resolution	12 MP
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
Aperture range (F-F)	2.8 - 2.8

Built-in display	Yes
Display	TFT
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone frequency	20 - 8000 Hz

Telepresence	No

Power source type	AC,PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width	1107 mm
Depth	99 mm
Height	116 mm
Weight	6200 g

Cables included	HDMI,LAN (RJ-45)
Networking cable length	6.1 m
HDMI cable length	1.8 m
Mounting kit	Yes
Speaker included	Yes
Microphone included	Yes
Camera included	Yes
