Produktbeskrivning

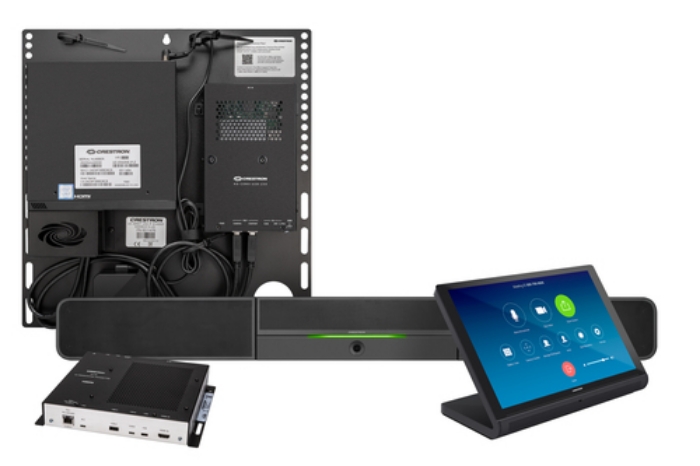

The UC-BX30-Z Crestron Flex advanced tabletop conferencing system provides a small room video conference solution for use with Zoom Rooms software. It supports single or dual video displays (not included) and features a tabletop touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.

Native Zoom Rooms Software Experience
The UC-BX30-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High‑Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.3 For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.



Viktiga egenskaper

Crestron UC-BX30-Z. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD. Ethernet LAN. Display: TFT, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Operating system installed: Windows 10 IoT. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	1
Product colour	Black

HD type	Full HD

Frequency range	80 - 20000 Hz
Automatic gain control	Yes
Echo cancellation	Yes
RMS rated power	40 W

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP

Megapixel (approx.)	12 MP
Effective sensor resolution	12 MP
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
3D NR (Noise Reduction)	Yes
Aperture range (F-F)	2.8 - 2.8

Display	TFT
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone frequency	20 - 8000 Hz

Telepresence	No

Computer system type	Mini PC
Operating system installed	Windows 10 IoT

Harmonized System (HS) code	85176990

Cables included	HDMI,LAN (RJ-45)
