Produktbeskrivning

The UC-ENGINE-BRKT-Z-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS‑UC‑1, CCS‑UC‑1‑AV, or CCS‑UC‑1‑AV‑PLUS) and camera to a complete video conference system for use with Zoom Rooms® software. It supports single or dual video displays1 (not included) and features a UC Bracket Assembly and cables.

Native Zoom Rooms® Software Experience

The UC-ENGINE-BRKT-Z-UPGRD system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Simplified Deployment

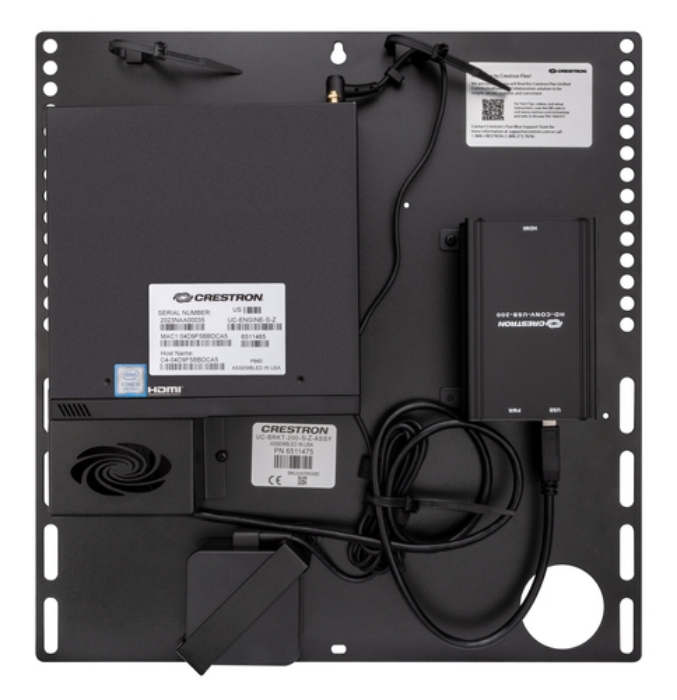

The UC Bracket Assembly (UC‑BRKT‑200‑S‑Z‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud service is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Deployment Resources

View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.



Viktiga egenskaper

Crestron UC-ENGINE-BRKT-Z-UPGRD. Product colour: Black, Ethernet LAN data rates: 1000 Mbit/s, Windows operating systems supported: Windows 11. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 368 mm, Depth: 48 mm, Height: 381 mm. Cables included: DisplayPort to HDMI, HDMI, LAN (RJ-45), HDMI cable length: 1.8 m, Power cable length: 1.8 m



Teknisk specifikation

Product colour	Black
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Windows operating systems supported	Windows 11

Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width	368 mm
Depth	48 mm
Height	381 mm
Weight	3600 g

Quantity	1
Cables included	DisplayPort to HDMI,HDMI,LAN (RJ-45)
HDMI cable length	1.8 m
Power cable length	1.8 m
Mounting kit	Yes
AC adapter included	Yes
