Produktbeskrivning

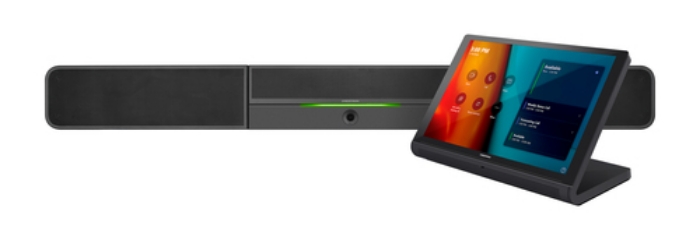

The UC‑B30‑T-GV Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a tabletop touch screen, smart soundbar and camera, UC bracket assembly, PoE injector, and cables. The UC-B30-T-GV is a TAA-compliant conference solution that is suitable for government deployments.

Native Microsoft Teams® Rooms Experience

The UC-B30-T-GV system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS-1070-GV-B-S) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.3

High‑Definition Video Conferencing with Impressive Audio

High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC‑SB1‑CAM‑FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Crestron Control System Integration

The UC-B30-T-GV can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud® service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Dual Control Option

A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.



Viktiga egenskaper

Crestron UC-B30-T-GV. Product type: Video collaboration bar. Sensor type: CMOS. HD type: HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Digital zoom: 7.5x. Ethernet LAN, Wi-Fi. Display: LCD, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Video collaboration bar
Product colour	Black

HD type	HD
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Frequency range	80 - 20000 Hz
Output level	91/1 dB
Audio beamforming	Yes
Echo cancellation	Yes
Speaker power	20 W

HDMI ports quantity	1
HDMI version	2.1
Microphone in	Yes

Interface module Ethernet LAN (RJ-45) ports	1

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.1x,IEEE 802.3at
Security algorithms	HTTPS,SSL/TLS

Megapixel (approx.)	12 MP
Camera type	Triple camera
Zoom capability	Yes
Digital zoom	7.5 x
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
Camera privacy shutter	Yes
Aperture number of steps	2.8
Gain control type	Auto

Built-in display	Yes
Display	LCD
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone frequency	20 - 8000 Hz
Adjustable microphone volume	Yes

VESA mounting	Yes
Mobile operating systems supported	Android

Operating temperature (T-T)	0 - 40 °C

Power source type	AC,DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	24 V

Width	245 mm
Depth	119 mm
Height	134 mm
Weight	1105 g

Cables included	3.5 mm to USB Type-C,DisplayPort to HDMI,HDMI,LAN (RJ-45),USB Type-A,USB Type-C
HDMI cable length	1.8 m
Wall mounting kit	Yes
AC adapter included	Yes
PoE adapter included	Yes
Speaker included	Yes
Camera included	Yes
Manual	Yes
Quick start guide	Yes
Microphone included	Yes
