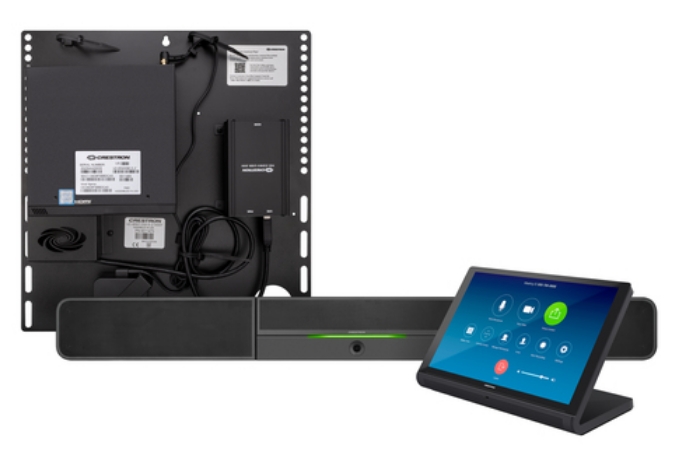

The UC-B30-Z Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Zoom Rooms software. It supports single or dual video displays (not included) and features a tabletop touch screen, smart soundbar and camera, UC bracket assembly, PoE injector, and cables.
Native Zoom Rooms Software Experience
The UC-B30-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High‑Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.
Viktiga egenskaper
Crestron UC-B30-Z. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Operating system installed: Windows 10 IoT. Product colour: Black
Teknisk specifikation
Performance
| Product type | Group video conferencing system |
|---|
| Number of cameras | 1 |
|---|
| Product colour | Black |
|---|
Video
| HD type | Full HD |
|---|
| Supported video modes | 1080p |
|---|
| Maximum frame rate | 30 fps |
|---|
Audio
| Frequency range | 80 - 20000 Hz |
|---|
| Echo cancellation | Yes |
|---|
| Automatic gain control | Yes |
|---|
| RMS rated power | 40 W |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 100 Mbit/s |
|---|
| Networking standards | IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
|---|
| Supported network protocols | DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP |
|---|
Camera
| Megapixel (approx.) | 12 MP |
|---|
| Sensor type | CMOS |
|---|
| Image sensor size | 1/2.3 " |
|---|
| Horizontal field of view | 120 ° |
|---|
| Vertical field of view | 90 ° |
|---|
| Diagonal field of view | 150 ° |
|---|
| 3D NR (Noise Reduction) | Yes |
|---|
| Aperture range (F-F) | 2.8 - 2.8 |
|---|
Display
| Display | TFT |
|---|
| Display diagonal | 10.1 " |
|---|
| Display resolution | 1920 x 1200 pixels |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen type | Capacitive |
|---|
Microphone
| Microphone frequency | 20 - 8000 Hz |
|---|
Computer system
| Computer system type | Mini PC |
|---|
| Operating system installed | Windows 10 IoT |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging content
| Cables included | HDMI,LAN (RJ-45) |
|---|
