Produktbeskrivning

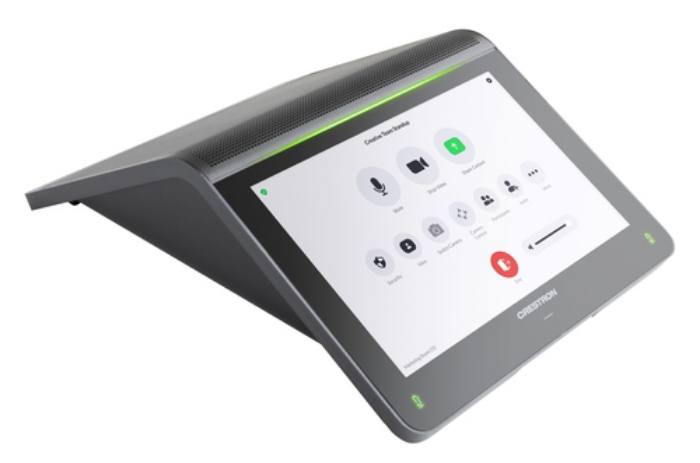

The UC-MM30-NC-Z-I Crestron Flex tabletop conferencing system provides a small room conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included) and features a Crestron Flex tabletop conference device, UC bracket assembly, PoE Injector, and cables.

Native Zoom Rooms® Software Experience

The UC-MM30-NC-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface with Impressive Audio

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-Z-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The bracket comes supplied with either a HD-CONV-USB 200 or HD-CONV-USB-300 convertor. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High‑Definition Video Conferencing

High-definition video conferencing is supported by using the following Crestron 1 Beyond cameras: IV‑CAMHK‑12‑SLVR‑1B, IV‑CAM‑P12 and IV‑CAM‑P20. Zoom Rooms software certified third-party cameras are also compatible with the system.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution that is equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud® service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.



Viktiga egenskaper

Crestron UC-MM30-NC-Z-I. Product type: Personal video conferencing system, Number of persons: 1 person(s). Sensor type: CMOS. HD type: HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Display: LCD, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Product colour: Black



Teknisk specifikation

Product type	Personal video conferencing system
Number of persons	1 person(s)
On Screen Display (OSD) languages	English
Product colour	Black

HD type	HD
Maximum video resolution	1280 x 800 pixels
Supported video modes	1080p
Supported graphics resolutions	1280 x 800
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Number of speakers	1
Audio system full duplex	Yes
Frequency range	100 - 20000 Hz
Output level	83/86 dB
Noise reduction	Yes
Echo cancellation	Yes
Automatic gain control	Yes
Microphone pick-up range	3 m
Speaker power	7 W

USB 2.0 ports quantity	1
Power over Ethernet plus (PoE+) ports quantity	1
Microphone in	Yes

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Cable standard	Cat5e
Security algorithms	SRTP,SSH,SSL/TLS
Password protection	Yes
Password protection type	User
Web-based management	Yes

Megapixel (approx.)	12 MP
Camera type	Dual camera
Zoom capability	Yes
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
Aperture number of steps	2.8
Gain control type	Auto

Built-in display	Yes
Display	LCD
Display diagonal	7 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone direction type	Omnidirectional
Microphone mute	Yes

Computer system type	Mini PC
VESA mounting	Yes
Windows operating systems supported	Windows 11

Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	48 V
Power over Ethernet (PoE) voltage	240 V

Certified for Microsoft Teams	Yes

Width	182 mm
Depth	244 mm
Height	77 mm
Weight	960 g

Cables included	DisplayPort to HDMI,HDMI,LAN (RJ-45),USB Type-A to Micro USB Type-B
Power cable length	1.8 m
HDMI cable length	1.8 m
Number of microphones included	1
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Speaker included	Yes
Quick start guide	Yes
Manual	Yes
Microphone included	Yes
Manual languages	English
