Produktbeskrivning

The UC-C100-PRO-Z-WM Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included), up to four cameras (not included), and features a wall mount touch screen and a UC bracket assembly.

Native Zoom Rooms® Software Experience

The UC-C100-PRO-Z-WM system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing. It is compatible with Multi-camera, Multi-stream, and Intelligent Director functions.

Custom Room Integration

The UC-C100-PRO-Z-WM system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software-certified USB camera such as the Crestron IV-CAMHK-12-SLVR-1B, IV-CAM-P12 and IV-CAM-P20 and a USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface

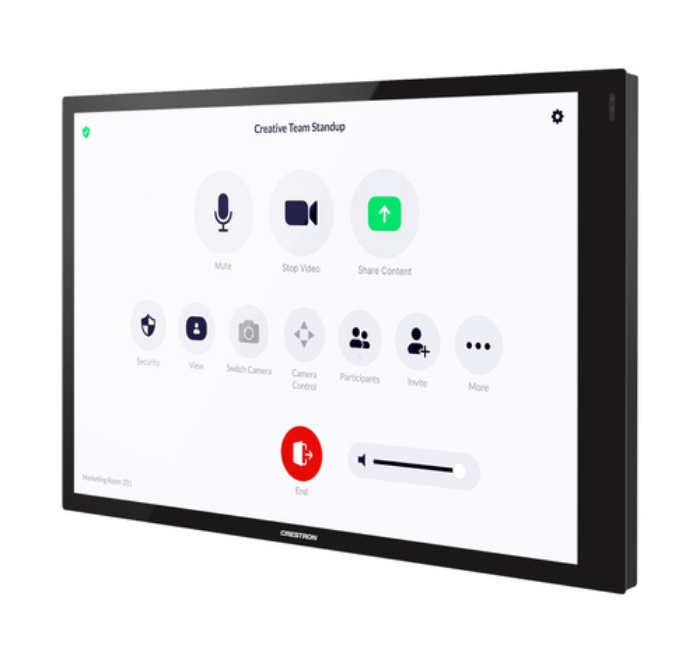

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

To simplify installation, the UC Bracket Assembly provides preassembled components on one ready-to-mount bracket. The bracket comes supplied with either a HD-CONV-USB 200 or HD-CONV-USB-300 convertor. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

Wall Mount Options

Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud® service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software updates.

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Deployment Resources

View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.



Viktiga egenskaper

Crestron UC-C100-PRO-Z-WM. Product type: Personal video conferencing system, Number of persons: 1 person(s). HD type: HD, Supported video modes: 1080p. Ethernet LAN, Wi-Fi. Display: LCD, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Personal video conferencing system
Number of persons	1 person(s)
On Screen Display (OSD) languages	English
Product colour	Black

HD type	HD
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Security algorithms	SRTP,SSH,SSL/TLS

Built-in display	Yes
Display	LCD
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Computer system type	Mini PC
VESA mounting	Yes
Windows operating systems supported	Windows 11

Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width	240 mm
Depth	51 mm
Height	149 mm
Weight	730 g

Cables included	DisplayPort to HDMI,HDMI,LAN (RJ-45),USB Type-A to Micro USB Type-B
Power cable length	1.8 m
HDMI cable length	1.8 m
AC adapter included	Yes
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes
