Produktbeskrivning

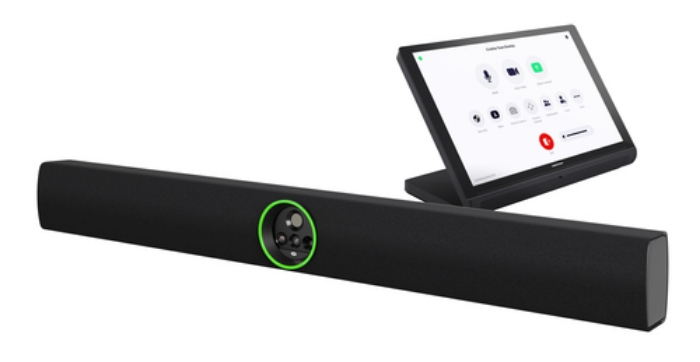

The UC-B70-A-Z-I Crestron Flex tabletop conferencing system provides a medium to large room video conference solution for use with Zoom Rooms® software. It simplifies the communications and collaboration needs with fewer components and maximum efficiency. The UC-B70-A-Z-I features a 10 in. tabletop touch screen, Crestron Videobar 70 with intelligent high-definition video and audio, a PoE injector, and cables. The UC-B70-A-Z-I also supports up to two video displays1 (not included).

The UC-B70-A-Z-I conferencing solution delivers a hassle-free setup and installation, better space utilization, a cleaner and visually appealing environment, easy collaboration and content sharing, and scalable deployment.

High‑Definition Video Conferencing with Impressive Audio

The powerful and elegant all-in-one (AIO) Crestron Videobar 70 provides a convenient and compact conferencing solution for medium to large-sized meeting rooms. It comprises:

- A quad-camera setup that captures the full room in 4K, automatically tracks and frames the presenter or everyone in the room based on its configuration, and enhances the video content using AI.
- 10-watt dual speakers produce full, rich, and natural-sounding audio. Additional digital signal processing with AEC and noise reduction assures optimal sound quality for an immersive experience.
- Integrated 24-microphone array to capture voices throughout the room using adaptive beamforming technology. AI noise cancellation is also provided to ensure crystal-clear communication with exceptional audio fidelity and pickup.
- Android™ OS running on the QCS8250 chipset that ensures a smooth and reliable conferencing experience every time.

Native Zoom Rooms® Software Experience

The UC-B70-A-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Android OS-Based Conferencing System

As an Android OS‑based conferencing system, the UC-B70-A-Z-I provides a consistent, secure Zoom Rooms® experience. The system's tabletop controller and Videobar 70 both run on Android OS to ensure compliance with enterprise requirements.

Intuitive User Interface

With a large 10 in. (254 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

The AIO Crestron Videobar 70 comes with one ready-to-mount wall bracket allowing the video bar to install cleanly beneath the display – connect the displays and touch screen and mount. The videobar can be installed behind a VESA® compliant display using the optional UC-SB2-DMK display mounting kit. The videobar can also be installed onto a table or similar surface using the optional UC-SB2-TTK tabletop mounting kit. Both mounting kits are sold separately.

Enterprise‑Grade Security

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud service is an IoT cloud-based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to Crestron Videobar 70. System updates are controlled by Crestron Auto update, XiO Cloud service, and Zoom Device Manager (ZDM).

Premium‑Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.



Viktiga egenskaper

Crestron UC-B70-A-Z-I. Product type: Video collaboration bar. HD type: 4K Ultra HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Digital zoom: 7.5x. Ethernet LAN, Wi-Fi. Bluetooth. Display: LCD, Display diagonal: 25.4 cm (10"), Display resolution: 1920 x 1200 pixels. Product colour: Black



Teknisk specifikation

Product type	Video collaboration bar
Bluetooth	Yes
Bluetooth version	5.2
Product colour	Black

HD type	4K Ultra HD
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Audio beamforming	Yes
Echo cancellation	Yes
Speaker power	10 W

Internal memory	12 MB
Internal memory type	LPDDR5
Total storage capacity	128 GB

HDMI ports quantity	2
HDMI version	2.1
USB connector type	USB Type-A,USB Type-C
Microphone in	Yes

Interface module Ethernet LAN (RJ-45) ports	1

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.1x,IEEE 802.3at
Security algorithms	HTTPS,SSL/TLS

Megapixel (approx.)	20 MP
Camera type	Triple camera
Zoom capability	Yes
Digital zoom	7.5 x
Image sensor size	1 "
Horizontal field of view	84.3 °
Vertical field of view	53.8 °
Camera privacy shutter	Yes
Gain control type	Auto

Built-in display	Yes
Display	LCD
Display diagonal	10 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Adjustable microphone volume	Yes
Number of microphone arrays	24

Mobile operating systems supported	Android

Operating temperature (T-T)	0 - 40 °C

Power source type	AC,DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	19 V

Width	245 mm
Depth	119 mm
Height	134 mm
Weight	1105 g

Cables included	3.5 mm to USB Type-C,HDMI,LAN (RJ-45),USB Type-A,USB Type-C
HDMI cable length	1.8 m
AC adapter included	Yes
PoE adapter included	Yes
Speaker included	Yes
Microphone included	Yes
Quick start guide	Yes
Manual	Yes
Camera included	Yes
