Produktbeskrivning

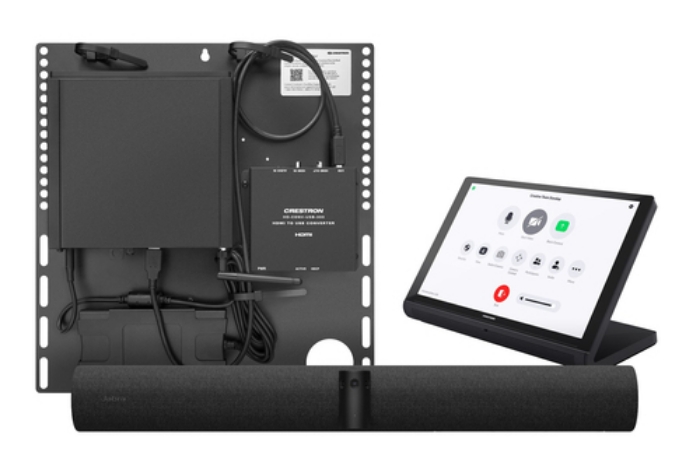

The UC-B31-Z Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included) and features a tabletop touch screen, Jabra® PanaCast 50 video bar, UC bracket assembly, PoE injector, and cables.

Native Zoom Rooms® Software Experience
The UC-B31-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High‑Definition Video Conferencing with Impressive Audio
High-quality speakers and microphones deliver exceptional full-duplex performance from the Jabra PanaCast 50 intelligent video bar (UC‑SB‑P50). Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view.

Visit jabra.com/panacast50 for more information on the Jabra PanaCast 50 video bar.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® branded hardware, expedited advance replacements, and a discounted rate for on-site support.

Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.



Viktiga egenskaper

Crestron Flex Small Room. Product type: Group video conferencing system. HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Operating system installed: Windows 10 IoT. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Product colour	Black
Wall mountable	Yes

HD type	4K Ultra HD
Maximum video resolution	3840 x 1080 pixels
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Number of speakers	4
Frequency range	80 - 20000 Hz

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP

Megapixel (approx.)	13 MP
Camera type	Triple camera
Zoom capability	Yes
Horizontal field of view	180 °
Vertical field of view	54 °

Built-in display	Yes
Display	TFT
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone sensitivity	-37 dB
Microphone frequency	100 - 8000 Hz
Number of microphones	8

Telepresence	No

Computer system type	Mini PC
VESA mounting	Yes
Operating system installed	Windows 10 IoT

Power source type	AC,PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	12 V
DC output current	5 A

Interface module dimensions (W x D x H)	245 x 119 x 134 mm
Interface module weight	1105 g
Camera dimensions (WxDxH)	650 x 125 x 90 mm
Camera weight	2200 g
