Produktbeskrivning

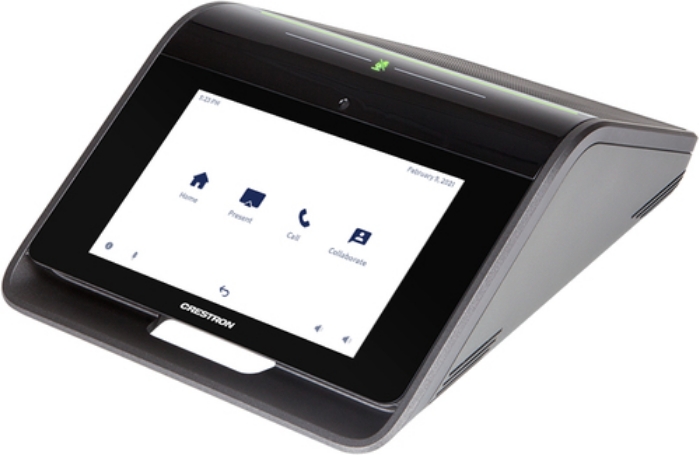

The Crestron Flex UC-M70-UA provides an audio conference room solution for open‑platform UC applications. It features the Crestron Flex tabletop conferencing device (CCS-UC-1), mic pod (CCS-UCA-MIC), cables, and power supply.
Intuitive User Interface with Impressive Audio
The Crestron Flex Tabletop Conference device (CCS‑UC‑1) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance.
Voice Calling & Audio Conferencing
The CCS-UC-1 is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory.
The CCS-UC-1 can pair with a mobile phone using Bluetooth® connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.
The CCS-UC-1 functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.
Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility. Its advanced security features ensure privacy, reliability, and compliance with your organization’s IT policies.
Easy Provisioning and Device Management
The XiO Cloud service1 is an IoT cloud-based provisioning service that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning.
Viktiga egenskaper
Crestron UC-M70-UA. Product type: Group audio conferencing system, Product colour: Black, Display type: LCD. Soundbar frequency range: 90 - 20000 Hz, Soundbar speaker RMS power: 11 W, Sound pressure level (max): 95 dB. USB connector type: Micro-USB B. Width: 227 mm, Depth: 324 mm, Height: 104 mm
Teknisk specifikation
Features
| Product type | Group audio conferencing system |
|---|
| Product colour | Black |
|---|
| Built-in speaker(s) | Yes |
|---|
| Built-in display | Yes |
|---|
| Display type | LCD |
|---|
| Display diagonal | 7 " |
|---|
| Display resolution | 1280 x 800 pixels |
|---|
Soundbar speaker
| Soundbar frequency range | 90 - 20000 Hz |
|---|
| Sound pressure level (max) | 95 dB |
|---|
| Soundbar speaker RMS power | 11 W |
|---|
Ports & interfaces
| USB connector type | Micro-USB B |
|---|
Weight & dimensions
| Width | 227 mm |
|---|
| Depth | 324 mm |
|---|
| Height | 104 mm |
|---|
| Weight | 2500 g |
|---|
