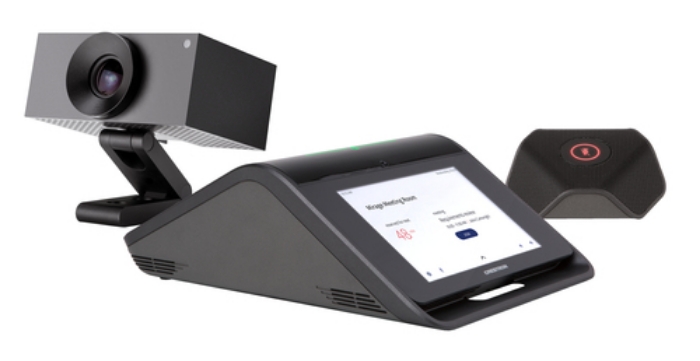

The Crestron Flex UC‑M70‑U provides a complete conferencing and collaboration solution for open‑platform UC applications. It supports a single video display, and features the Crestron Flex tabletop conferencing device (CCS‑UC‑1‑AV), AI collaboration camera (UC-CAM-L1), mic pod (CCS-UCA-MIC), cables, and power supply.

Intuitive User Interface with Impressive Audio
The Crestron Flex Tabletop Conference device (CCS-UC-1-AV) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance.

High-Definition Video Conferencing
The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.

Voice Calling & Audio Conferencing
The CCS-UC-1-AV is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory.

The CCS-UC-1-AV can pair with a mobile phone using Bluetooth connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.

The CCS-UC-1-AV functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.

BYOD Multimedia Presentation
Connect a display device to the CCS-UC-1-AV's HDMI output port to enable high-definition video presentation from all types of BYOD sources.

Connect an AV source to the HDMI input port to present full-motion HD video content on the room display. Sources with DisplayPort or USB Type-C outputs can also be connected using an optional Crestron video cable system (CBL-MULTI-6 or CBL-MULTI-12, sold separately).

Use the built-in AirMedia technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi-Fi wireless network.



Viktiga egenskaper

Crestron UC-M70-U. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	1
Product colour	Black

HD type	Full HD
Maximum frame rate	30 fps

Number of speakers	1
Frequency range	90 - 22000 Hz
RMS rated power	7 W

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP

Megapixel (approx.)	20.3 MP
Effective sensor resolution	20.3 MP
Sensor type	CMOS
Image sensor size	1 "
Horizontal field of view	92 °
Vertical field of view	65 °
Diagonal field of view	103 °
Aperture range (F-F)	2.9 - 2.9

Display	TFT
Display diagonal	7 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Telepresence	No

Harmonized System (HS) code	85176990

Camera dimensions (WxDxH)	122 x 89 x 53 mm
Camera weight	600 g

Cables included	HDMI,USB
