Produktbeskrivning

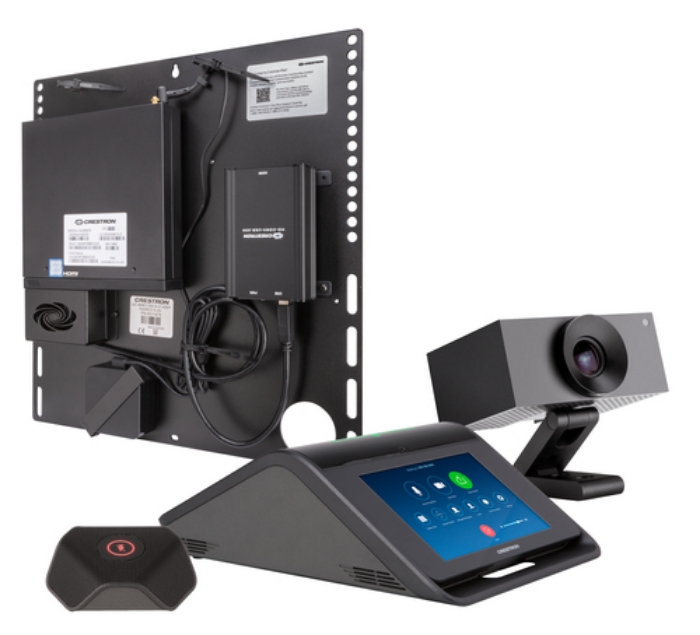

The UC-M70-Z Crestron Flex tabletop conferencing system provides a large room video conference solution for use with Zoom Rooms software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, AI collaboration camera, UC bracket assembly, microphone pod, power supply, and cables.
Native Zoom Rooms Software Experience
The UC‑M70‑Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing
The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.
Viktiga egenskaper
Crestron UC-M70-Z. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Operating system installed: Windows 10 IoT. Product colour: Black
Teknisk specifikation
Performance
| Product type | Group video conferencing system |
|---|
| Number of cameras | 1 |
|---|
| Product colour | Black |
|---|
Video
| HD type | Full HD |
|---|
| Maximum frame rate | 30 fps |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Frequency range | 90 - 22000 Hz |
|---|
| RMS rated power | 11 W |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 100 Mbit/s |
|---|
| Networking standards | IEEE 802.1x,IEEE 802.3at |
|---|
| Supported network protocols | DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP |
|---|
Camera
| Megapixel (approx.) | 20.3 MP |
|---|
| Effective sensor resolution | 20.3 MP |
|---|
| Sensor type | CMOS |
|---|
| Image sensor size | 1 " |
|---|
| Horizontal field of view | 92 ° |
|---|
| Vertical field of view | 65 ° |
|---|
| Diagonal field of view | 103 ° |
|---|
| Aperture range (F-F) | 2.9 - 2.9 |
|---|
Display
| Display | TFT |
|---|
| Display diagonal | 7 " |
|---|
| Display resolution | 1280 x 800 pixels |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen type | Capacitive |
|---|
Computer system
| Computer system type | Mini PC |
|---|
| Operating system installed | Windows 10 IoT |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Weight & dimensions
| Camera dimensions (WxDxH) | 122 x 89 x 53 mm |
|---|
| Camera weight | 600 g |
|---|
Packaging content
| Cables included | HDMI,LAN (RJ-45),USB |
|---|
