Produktbeskrivning

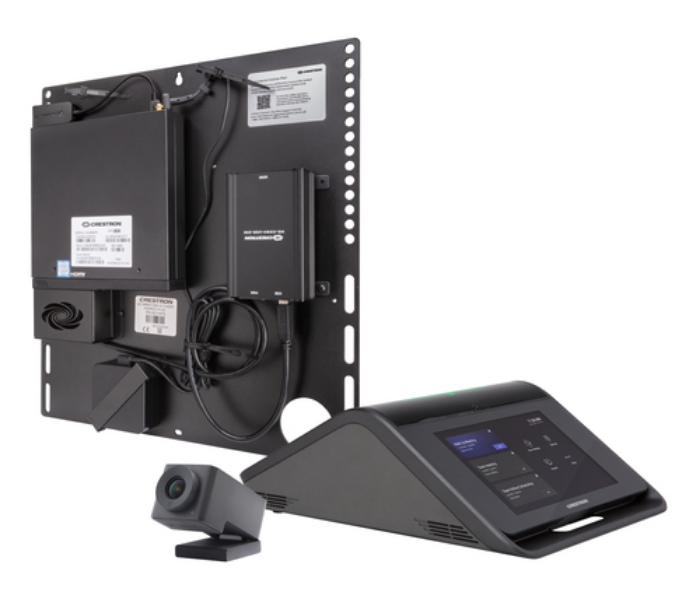

The UC-M50-T Crestron Flex tabletop conferencing system provides a medium room video conference solution for use with Microsoft Teams Rooms software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables.
Native Microsoft Teams Rooms Experience
The UC‑M50‑T system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑T‑V) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The conference device also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Crestron Flex tabletop conference device to the UC Bracket Assembly.
High-Definition Video Conferencing
The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.
Crestron Control System Integration
The UC-M50-T integrates with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.
Viktiga egenskaper
Crestron UC-M50-T. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black
Teknisk specifikation
Performance
| Product type | Group video conferencing system |
|---|
| Number of cameras | 1 |
|---|
| Product colour | Black |
|---|
Video
| HD type | Full HD |
|---|
| Supported video modes | 1080p |
|---|
| Maximum frame rate | 30 fps |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Frequency range | 90 - 22000 Hz |
|---|
| Echo cancellation | Yes |
|---|
| Automatic gain control | Yes |
|---|
| RMS rated power | 11 W |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 100 Mbit/s |
|---|
| Networking standards | IEEE 802.1x,IEEE 802.3at |
|---|
| Supported network protocols | DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP |
|---|
Camera
| Megapixel (approx.) | 12 MP |
|---|
| Effective sensor resolution | 12 MP |
|---|
| Sensor type | CMOS |
|---|
| Image sensor size | 1/2.3 " |
|---|
| Horizontal field of view | 120 ° |
|---|
| Vertical field of view | 90 ° |
|---|
| Diagonal field of view | 150 ° |
|---|
| Aperture range (F-F) | 2.8 - 2.8 |
|---|
Display
| Display | TFT |
|---|
| Display diagonal | 7 " |
|---|
| Display resolution | 1280 x 800 pixels |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen type | Capacitive |
|---|
Computer system
| Computer system type | Mini PC |
|---|
| Operating system installed | Windows 10 IoT Enterprise |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Weight & dimensions
| Camera dimensions (WxDxH) | 41 x 72 x 36 mm |
|---|
| Camera weight | 120 g |
|---|
Packaging content
| Cables included | HDMI,LAN (RJ-45),USB |
|---|
