Produktbeskrivning

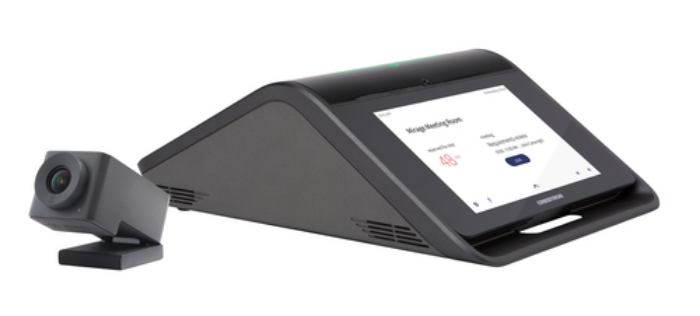

The Crestron Flex UC‑M50‑U provides a complete conferencing and collaboration solution for open‑platform UC applications. It supports a single video display, and features the Crestron Flex tabletop conferencing device (CCS‑UC‑1‑AV), a collaboration camera (CCS-CAM-USB-F-400), cables, and power supply.

Intuitive User Interface with Impressive Audio
The Crestron Flex Tabletop Conference device (CCS-UC-1-AV) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance.

High-Definition Video Conferencing
The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.

Voice Calling & Audio Conferencing
The CCS‑UC‑1‑AV is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory.

The CCS-UC-1-AV can pair with a mobile phone using Bluetooth connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button.

The CCS-UC-1-AV functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.

BYOD Multimedia Presentation
Connect a display device to the CCS-UC-1-AV's HDMI output port to enable high‑definition video presentation from all types of BYOD sources.

Connect an AV source to the HDMI input port to present full‑motion HD video content on the room display. Sources with DisplayPort™ or USB Type‑C outputs can also be connected using an optional Crestron video cable system (CBL‑MULTI‑6 or CBL‑MULTI‑12, sold separately).

Use the built‑in AirMedia technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi‑Fi wireless network.



Viktiga egenskaper

Crestron UC-M50-U. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	1
Product colour	Black

HD type	Full HD
Supported video modes	1080p
Maximum frame rate	30 fps

Frequency range	90 - 22000 Hz
RMS rated power	11 W

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3at
Supported network protocols	LDAP, Kerberos, SSL, TLS, SSH, SFTP

Megapixel (approx.)	12 MP
Effective sensor resolution	12 MP
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
Aperture range (F-F)	2.8 - 2.8

Display	TFT
Display diagonal	7 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Harmonized System (HS) code	85176990

Cables included	HDMI,USB
