Produktbeskrivning

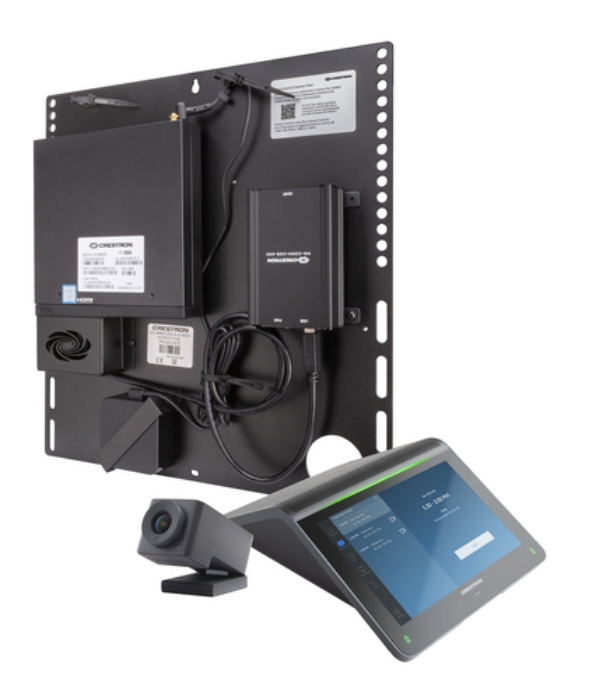

The UC-MM30-Z-I Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Zoom Rooms software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE Injector, and cables.

Native Zoom Rooms Software Experience
The UC-MM30-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-Z-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.

High‑Definition Video Conferencing
The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.



Viktiga egenskaper

Crestron UC-MM30-Z-I. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Ethernet LAN. Display: TFT, Display diagonal: 17.8 cm (7"), Display resolution: 1280 x 800 pixels. Operating system installed: Windows 10 IoT. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	1
Product colour	Black

HD type	Full HD
Supported video modes	1080p
Maximum frame rate	30 fps

Number of speakers	1
Frequency range	100 - 20000 Hz
Output level	83/83 dB
Noise reduction	Yes
Automatic gain control	Yes
Echo cancellation	Yes
RMS rated power	7 W

Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP

Megapixel (approx.)	12 MP
Effective sensor resolution	12 MP
Sensor type	CMOS
Image sensor size	1/2.3 "
Horizontal field of view	120 °
Vertical field of view	90 °
Diagonal field of view	150 °
Aperture range (F-F)	2.8 - 2.8

Display	TFT
Display diagonal	7 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Microphone direction type	Omnidirectional
Number of microphones	4

Telepresence	No

Computer system type	Mini PC
Operating system installed	Windows 10 IoT

Harmonized System (HS) code	85176990

Camera dimensions (WxDxH)	41 x 72 x 36 mm
Camera weight	120 g

Cables included	HDMI,LAN (RJ-45),USB
