Produktbeskrivning

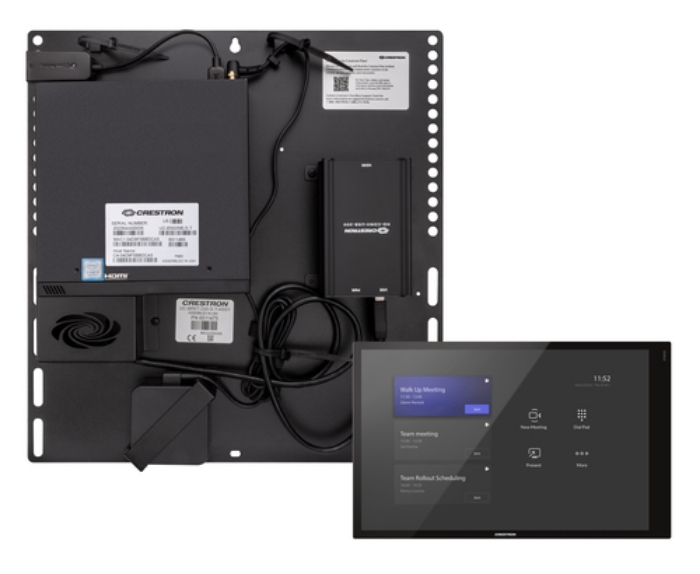

The UC-C100-T-WM Crestron Flex integrator kit provides a customizable video conference solution for use with Microsoft Teams Rooms software. It supports single or dual video displays1 (not included) and features a wall mount touch screen and a UC bracket assembly.

Native Microsoft Teams Rooms Experience
The UC-C100-T-WM system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on‑premises Skype® for Business software, or a hybrid of the two.

Custom Room Integration
The UC-C100-T-WM system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Microsoft Teams software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron wall mount touch screen (TSW‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment
The UC Bracket Assembly (UC‑BRKT‑200‑S‑T‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Wall Mount Options
Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

Crestron Control System Integration
The UC-C100-T-WM can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.

Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.



Viktiga egenskaper

Crestron UC-C100-T-WM. Product type: Video conferencing service management system. Ethernet LAN. Display: TFT, Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels



Teknisk specifikation

Product type	Video conferencing service management system

Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Networking standards	IEEE 802.3at
Supported network protocols	TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP
Cable standard	Cat5

Built-in display	Yes
Display	TFT
Display diagonal	10.1 "
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive

Telepresence	No

Power source type	PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Cables included	HDMI,LAN (RJ-45)
PoE adapter included	Yes
Mounting kit	Yes
