Produktbeskrivning

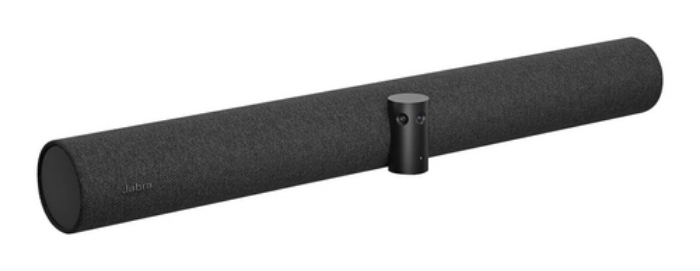

The Jabra® PanaCast 50 intelligent video bar combines microphones, speakers, and cameras in one front‑of‑room device. High-quality speakers and microphones deliver exceptional full-duplex performance. Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view. The Jabra PanaCast 50 is optimized for all leading UC platforms, including both Microsoft Teams® Rooms and Zoom Rooms™ software.



Viktiga egenskaper

Crestron UC-SB-P50. Product type: Group video conferencing system. HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Digital zoom: 6x. Ethernet LAN. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of cameras	3
Product colour	Black
Wall mountable	Yes

HD type	4K Ultra HD
Maximum video resolution	3840 x 1080 pixels
Maximum frame rate	30 fps

Built-in speaker(s)	Yes
Frequency range	80 - 20000 Hz

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
AUX in (speaker)	Yes

Ethernet LAN	Yes

Megapixel (approx.)	13 MP
Camera type	Triple camera
Zoom capability	Yes
Digital zoom	6 x
Horizontal field of view	180 °
Vertical field of view	54 °

Microphone sensitivity	-37 dB
Microphone frequency	100 - 8000 Hz
Number of microphones	8

Telepresence	No

Operating temperature (T-T)	5 - 35 °C

Power source type	AC,PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	12 V
DC output current	5 A

Width	650 mm
Depth	125 mm
Height	90 mm
Weight	2200 g
