Produktbeskrivning

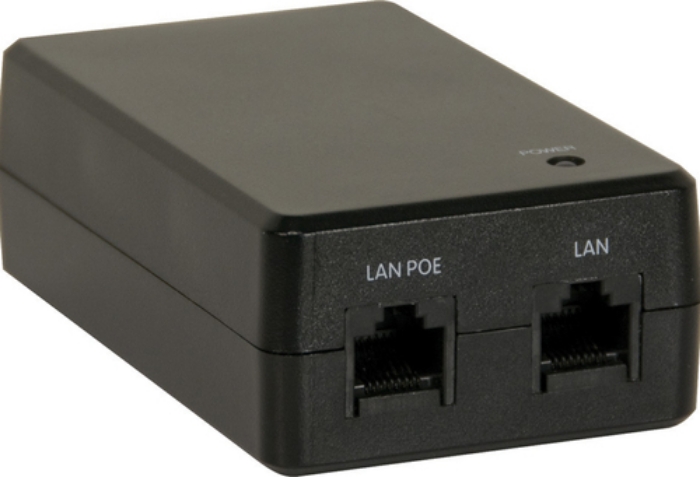

The PWE-4803RU is an 802.3af compliant Power over Ethernet (PoE) power source designed to support PoE powered devices such as the Crestron® CEN-WAP-ABG-1G Wireless Access Point. Standards-based Power over Ethernet affords a one-wire solution for connecting Ethernet devices, delivering power and data over a single CAT5/6 network cable. Using the PWE-4803RU, there is no need to install a separate power supply at the device location. The PWE-4803RU can simply be mounted at any convenient location up to 100 meters (328 feet) from the device.



Viktiga egenskaper

Crestron PWE-4803RU. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Black, LED indicators: Power. Power over Ethernet (PoE) voltage: 48 V, AC adapter input voltage: 100 - 250 V, AC adapter frequency: 50/60 Hz. Weight: 169 g, Dimensions (WxDxH): 61 x 101.1 x 34.3 mm



Teknisk specifikation

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Power over Ethernet (PoE)	Yes

Product colour	Black
LED indicators	Power

Ethernet LAN (RJ-45) ports	2

Power over Ethernet (PoE) voltage	48 V
AC adapter input voltage	100 - 250 V
AC adapter frequency	50/60 Hz
Output current	0.35 A

Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight	169 g
Dimensions (WxDxH)	61 x 101.1 x 34.3 mm
