Produktbeskrivning

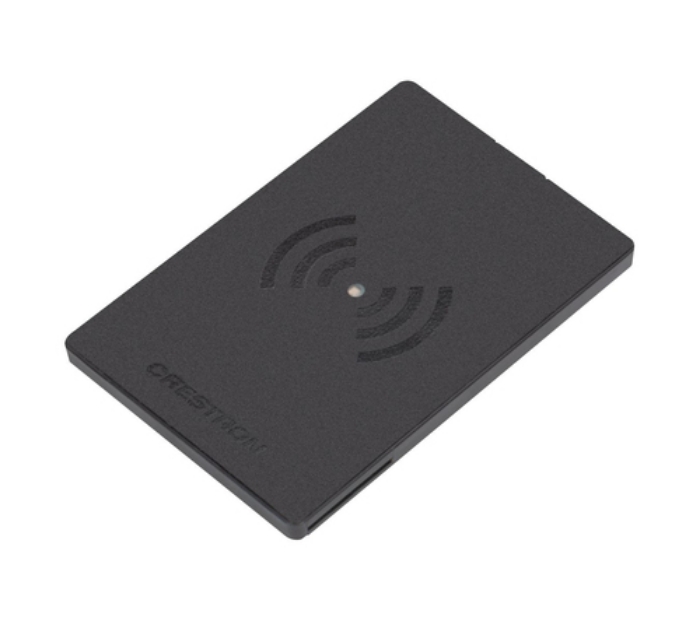

The Crestron® RFID-USB is a sleek RFID card reader that integrates into supported room scheduling applications and custom room control projects via a TSW-70 series or TSS-70 series touch screen. The RFID-USB installs next to the touch screen, allowing users to easily authenticate with or communicate to the touch screen by scanning an RFID card. The RFID-USB also integrates with a Crestron control system for custom room control or access projects. The RFID‑USB supports a range of LF and HF technologies (125 kHz and 13.56 MHz) as well as NFC and Bluetooth® Low Energy (BLE) communications to satisfy numerous RFID use cases.

The RFID-USB provides a small form factor and versatile mounting options for incorporation into new and existing installations. The RFID‑USB attaches securely to glass or drywall surfaces using adhesive pads without requiring any screws. The RFID-USB also is compatible with mullion mount kit installations (TSW‑770/1070‑MSMK series). The RFID‑USB connects directly to the touch screen via USB for power supply and data communication.



Viktiga egenskaper

Crestron RFID-USB. AC adapter output voltage: 4.3 - 5.5 V. Width: 46 mm, Depth: 4 mm, Height: 66 mm



Teknisk specifikation

Interface	USB
Bluetooth version	4.2
Bluetooth Low Energy (BLE)	Yes
Operating frequency	13.56 MHz
Frequency	125 kHz
Product colour	Black
Integrated antenna	Yes
Working distance	80 mm
Compliance certificates	Federal Communications Commission (FCC)
Housing material	Plastic
Sustainability compliance	Yes

Battery type	Not available
AC adapter output voltage	4.3 - 5.5 V

Width	46 mm
Depth	4 mm
Height	66 mm
Weight	18 g

Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	5 - 95 °C
