Produktbeskrivning

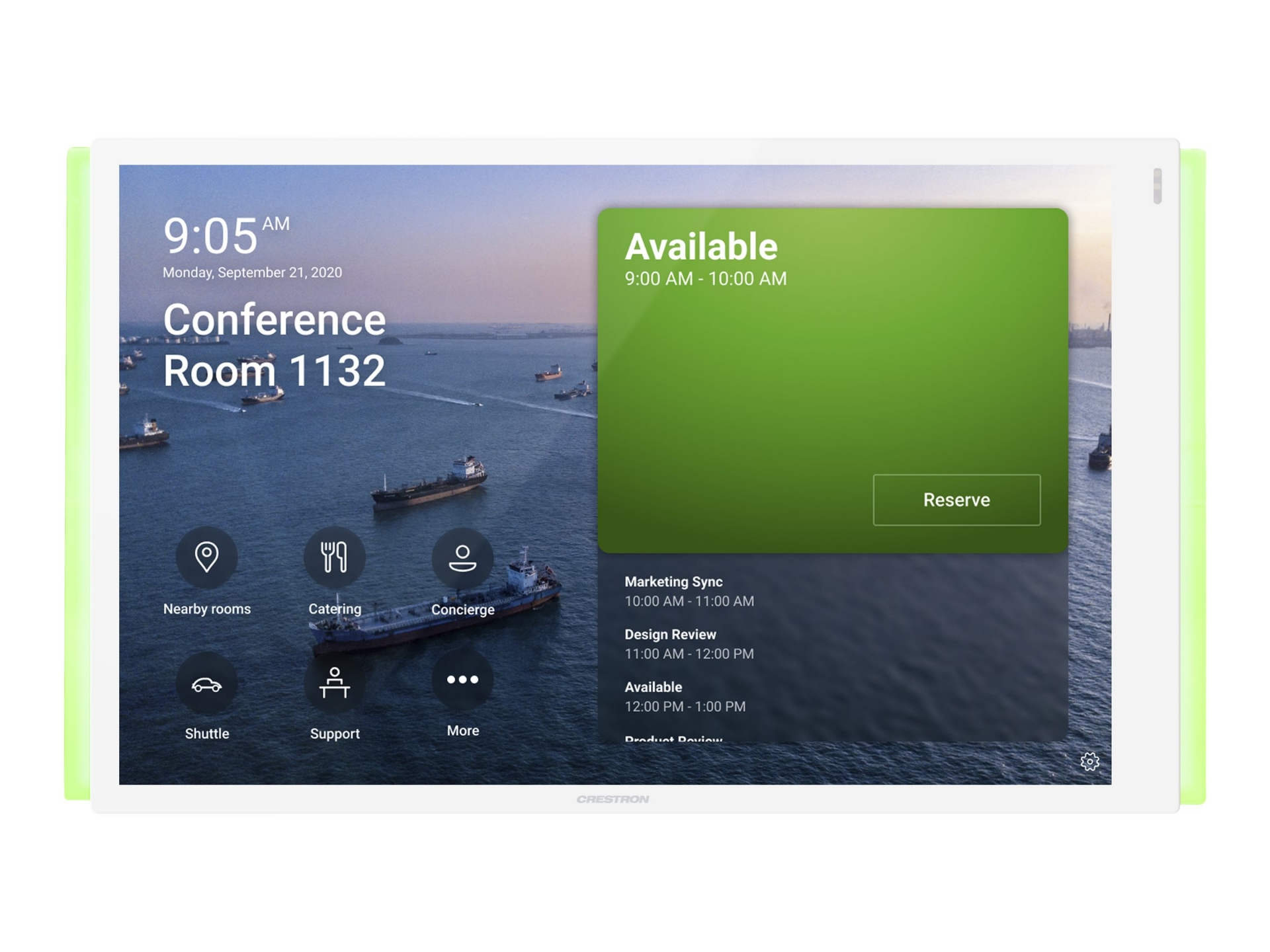

A stylish and versatile 10.1" wall-mount touch screen designed specifically to run the Microsoft Teams Panels scheduling application. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. Includes one TSW-1070-LB series room availability light bar with the touch screen for a complete room scheduling solution.
Egenskaper
Bluetooth beaconThe built‑in Bluetooth proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
Proximity sensor and brightness controlsThe TSS-1070 provides a built-in proximity sensor that wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
FunctionalThe TSS-1070 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi‑Fi communications via a local wireless access point (WAP).
ReliableThe TSS-1070 is purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
Teknisk specifikation
Allmänt
Produkttyp | Rumsbokare |
Integrerade komponenter | Högtalare, närhetsavkännare för Bluetooth |
Integrerade sensorer | Närhetssensor |
Strömkälla | PoE |
Förpackningsinnehåll | TSW-1070-LB-W-S ljusskena |
Anslutningsteknik | Trådlös, kabelansluten - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Max räckvidd på öppen plats | 15 m |
Frekvensband | 2.4 Ghz, 5 GHz |
Bildskärm | 10.1" - LED - färg |
Bildskärmsupplösning | 1920 x 1200 pixlar |
Interfaces Details | LAN/ström 2 x USB 2.0 |
Funktioner | Väggmonterbar, återställningsknapp, ytmonterbar, kapacitiv pekskärm, ljusstyrka på 400 cd/m2, automatisk kontroll av ljusstyrka, kontrast på 1000:1, PoE+, DHCP-stöd, ström över Ethernet (PoE), auto-negotiation, stöd för IPv6, halvduplexläge, fullt duplexläge, SSH-stöd, PoE+, IPv4-support, molnhanterad, stöd för SNMP |
Styrenhet
Inmatningstyp | Pekskärm |
Diverse
Inkluderade tillbehör | Monteringssats |
Produktmaterial | Plast |
Färg | Smooth white |
Krypteringsalgoritm | AES, 128-bitars WEP, 64-bitars WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
Standarder som följs | FCC Part 15 B, IC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x |
Mått och vikt
Bredd | 25.9 cm |
Djup | 5.8 cm |
Höjd | 14.9 cm |
Vikt | 730 g |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
