Produktbeskrivning

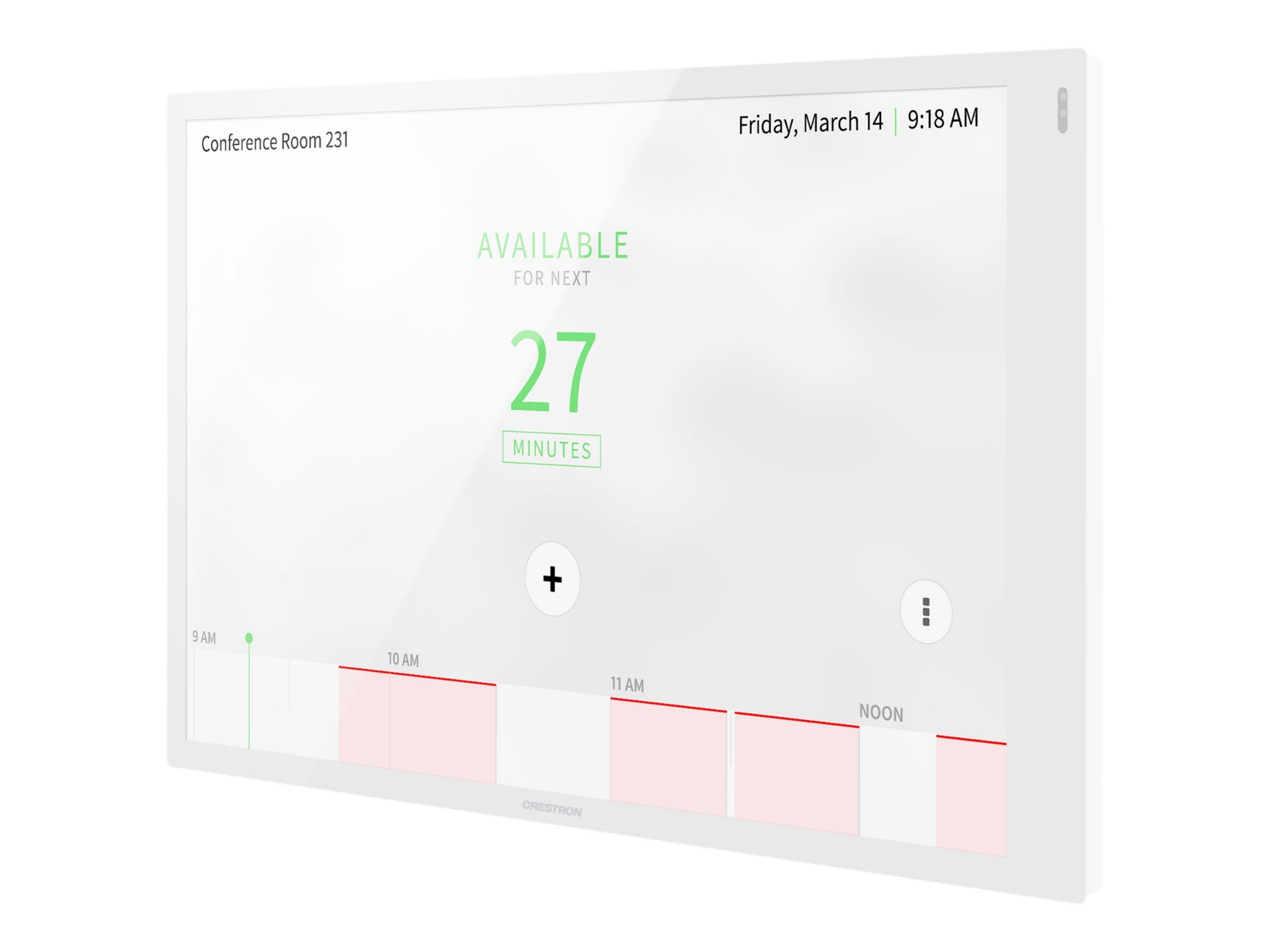

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. TAA compliant.

The TSS-1070 is compatible with Wall-Smart flush wall mounting accessories.



Egenskaper

Functional
The TSS-1070 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi‑Fi communications via a local wireless access point (WAP).

Versatile
Crestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.

Reliable
Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touch screens are purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the touch screen is using the latest features, the TSS-1070 checks nightly for app updates and loads the latest version automatically.

Secure
Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.

Manageable
Crestron touch screens feature cloud‑based provisioning and management to streamline the process of configuring and monitoring every touch screen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.

Cost‑effective
Crestron touch screens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-1070 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.



Teknisk specifikation

Produkttyp	Rumsbokare
Strömkälla	PoE
Anslutningsteknik	Trådlös, kabelansluten - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Max räckvidd på öppen plats	15 m
Frekvensband	2.4 Ghz, 5 GHz
Bildskärm	10.1" - TFT - 24-bitars färg
Bildskärmsupplösning	1920 x 1200 pixlar
Interfaces Details	LAN/ström 2 x USB 2.0
Funktioner	Ljusstyrkereglage, återställningsknapp, kant-mot-kant, kapacitiv pekskärm, ljusstyrka på 400 cd/m2, PoE+, DHCP-stöd, auto-negotiation, stöd för IPv6, halvduplexläge, fullt duplexläge, SSH-stöd, IPv4-support, stöd för SNMP, automatisk omkoppling, CIP-stöd, UDP-stöd, TCP-stöd

Inmatningstyp	Pekskärm
Antal knappar	6

Produktmaterial	Plast
Färg	Smooth white
Krypteringsalgoritm	AES, 128-bitars WEP, 64-bitars WEP, SSL, TLS, TKIP, WPA, WPA2-PSK
Standarder som följs	IC, DIN 49073, FCC Part 15 Class B, IEEE 802.3at, BS 4662, IEEE 802.1x

Bredd	24 cm
Djup	5.1 cm
Höjd	14.9 cm
Vikt	730 g

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 95 % (icke-kondenserande)
