Produktbeskrivning

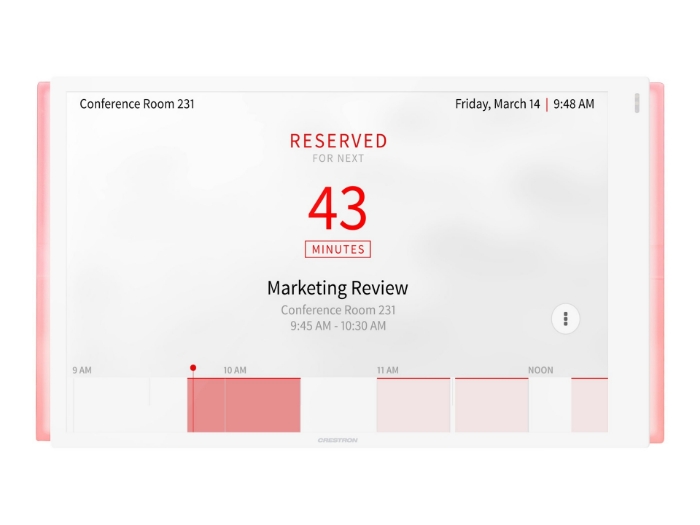

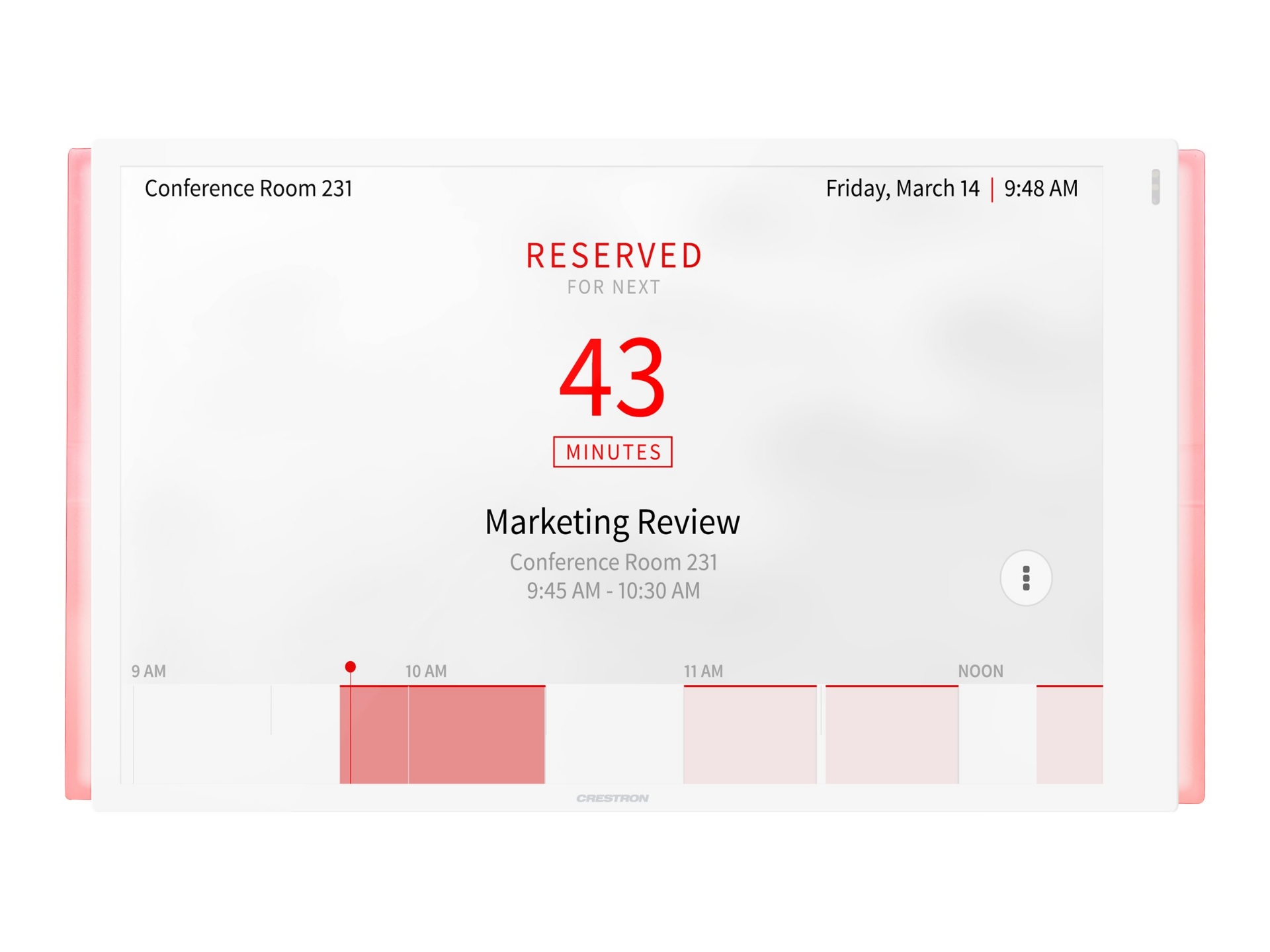

Crestron TSS-1070 series touch screens are designed to enhance and simplify room scheduling across an enterprise. The TSS-1070 installs near the entrance of a meeting room or huddle space to provide a clear indication of the room availability and schedule, and it integrates seamlessly with a variety of popular scheduling services. The TSS-1070-LB KIT includes one TSW‑1070‑LB series room availability light bar with the touch screen, providing for a complete room scheduling solution.
Egenskaper
FunctionalThe TSS-1070 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi‑Fi communications via a local wireless access point (WAP).
VersatileCrestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces.
ReliableConsumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touch screens are purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment.
SecureCrestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.
ManageableCrestron touch screens feature cloud‑based provisioning and management to streamline the process of configuring and monitoring every touch screen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
Cost‑effectiveCrestron touch screens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-1070 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.
Teknisk specifikation
Allmänt
Produkttyp | Rumsbokare väggfäste |
Integrerade komponenter | Högtalare |
Strömkälla | PoE |
Placering/montering | Väggmontering |
Förpackningsinnehåll | Ljuslist |
Anslutningsteknik | Trådlös, kabelansluten - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Max räckvidd på öppen plats | 15 m |
Frekvensband | 2.4 Ghz, 5 GHz |
Bildskärm | 10.1" - TFT - 24-bitars färg |
Bildskärmsupplösning | 1920 x 1200 pixlar |
Interfaces Details | LAN/ström 2 x USB 2.0 |
Funktioner | Ljusstyrkereglage, återställningsknapp, kant-mot-kant, kapacitiv pekskärm, ljusstyrka på 400 cd/m2, PoE+, DHCP-stöd, auto-negotiation, stöd för IPv6, halvduplexläge, fullt duplexläge, SSH-stöd, IPv4-support, stöd för SNMP, automatisk omkoppling, CIP-stöd, UDP-stöd, TCP-stöd |
Styrenhet
Inmatningstyp | Pekskärm |
Antal knappar | 6 |
Diverse
Produktmaterial | Plast |
Färg | Smooth white |
Krypteringsalgoritm | AES, 128-bitars WEP, 64-bitars WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
Standarder som följs | IC, DIN 49073, FCC Part 15 Class B, IEEE 802.3at, BS 4662, IEEE 802.1x |
Mått och vikt
Bredd | 25.9 cm |
Djup | 5.8 cm |
Höjd | 14.9 cm |
Vikt | 730 g |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
