Produktbeskrivning

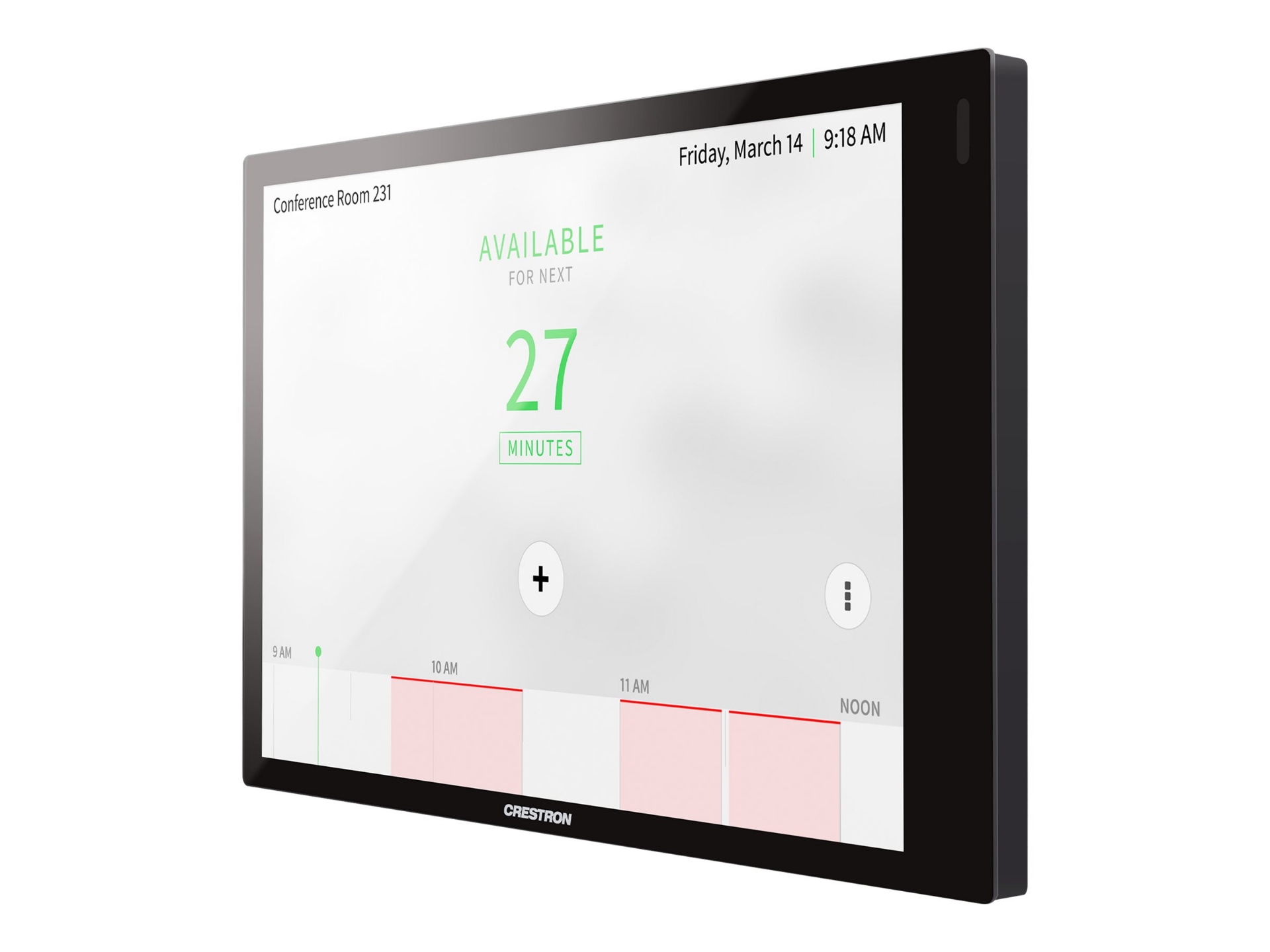

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. Includes one TSW-770-LB series room availability light bar with the touch screen for a complete room scheduling solution.
Egenskaper
FunctionalThe TSS-770 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-770 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi-Fi communications via a local wireless access point (WAP).
ReliableConsumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touchscreens are purpose-built for permanent installation and years of reliable 24/7 operation in a commercial environment.
SecureCrestron touchscreens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.
ManageableCrestron touchscreens feature cloud-based provisioning and management to streamline the process of configuring and monitoring every touchscreen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
Cost-effectiveCrestron touchscreens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-770 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.
Teknisk specifikation
Allmänt
Produkttyp | Rumsbokare |
Integrerade komponenter | Högtalare, närhetsavkännare för Bluetooth |
Integrerade sensorer | Närhetssensor |
Strömkälla | PoE |
Förpackningsinnehåll | TSW-770-LB-B-S ljusskena |
Anslutningsteknik | Trådlös, kabelansluten - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Max räckvidd på öppen plats | 15 m |
Frekvensband | 2.4 Ghz, 5 GHz |
Bildskärm | 7" - LED - färg |
Bildskärmsupplösning | 1 280 x 800 pixlar |
Interfaces Details | LAN/ström 2 x USB 2.0 |
Funktioner | Väggmonterbar, återställningsknapp, ytmonterbar, kapacitiv pekskärm, automatisk kontroll av ljusstyrka, PoE+, DHCP-stöd, ström över Ethernet (PoE), auto-negotiation, stöd för IPv6, halvduplexläge, fullt duplexläge, SSH-stöd, PoE+, IPv4-support, molnhanterad, stöd för SNMP |
Styrenhet
Inmatningstyp | Pekskärm |
Diverse
Inkluderade tillbehör | Monteringssats |
Produktmaterial | Plast |
Färg | Smooth black |
Krypteringsalgoritm | AES, 128-bitars WEP, 64-bitars WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
Standarder som följs | FCC Part 15 B, IC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x |
Mått och vikt
Bredd | 18.5 cm |
Djup | 5.7 cm |
Höjd | 10.6 cm |
Vikt | 400 g |
Miljöparametrar
Min temperatur vid drift | 5 °C |
Max temperatur vid drift | 40 °C |
Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
