Produktbeskrivning

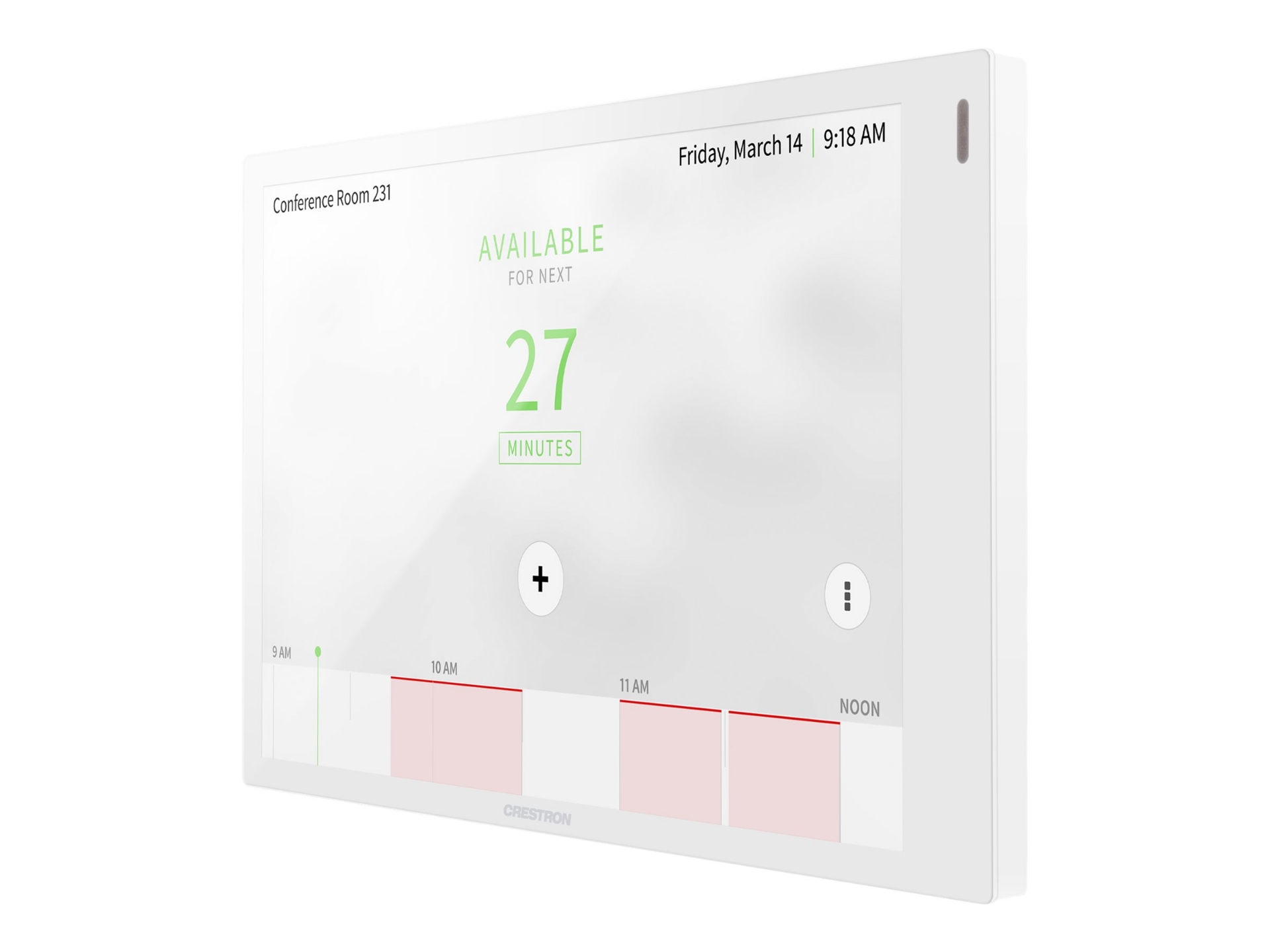

Crestron TSS-770 series touchscreens are designed to enhance and simplify room scheduling across an enterprise. The TSS-770 installs near the entrance of a meeting room or huddle space to provide a clear indication of the room availability and schedule, and it integrates seamlessly with a variety of popular scheduling services.



Egenskaper

Functional
The TSS-770 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-770 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi-Fi communications via a local wireless access point (WAP).

Reliable
Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touchscreens are purpose-built for permanent installation and years of reliable 24/7 operation in a commercial environment.

Secure
Crestron touchscreens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.

Manageable
Crestron touchscreens feature cloud-based provisioning and management to streamline the process of configuring and monitoring every touchscreen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.

Cost-effective
Crestron touchscreens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-770 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.



Teknisk specifikation

Produkttyp	Rumsbokare
Integrerade komponenter	Högtalare, närhetsavkännare för Bluetooth
Integrerade sensorer	Närhetssensor
Strömkälla	PoE
Anslutningsteknik	Trådlös, kabelansluten - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Max räckvidd på öppen plats	15 m
Frekvensband	2.4 Ghz, 5 GHz
Bildskärm	7" - LED - färg
Bildskärmsupplösning	1 280 x 800 pixlar
Interfaces Details	LAN/ström 2 x USB 2.0
Funktioner	Väggmonterbar, återställningsknapp, ytmonterbar, kapacitiv pekskärm, automatisk kontroll av ljusstyrka, PoE+, DHCP-stöd, ström över Ethernet (PoE), auto-negotiation, stöd för IPv6, halvduplexläge, fullt duplexläge, SSH-stöd, PoE+, IPv4-support, molnhanterad, stöd för SNMP

Inmatningstyp	Pekskärm

Inkluderade tillbehör	Monteringssats
Produktmaterial	Plast
Färg	Smooth white
Krypteringsalgoritm	AES, 128-bitars WEP, 64-bitars WEP, SSL, TLS, TKIP, WPA, WPA2-PSK
Standarder som följs	FCC Part 15 B, IC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x

Bredd	17.3 cm
Djup	5.1 cm
Höjd	10.6 cm
Vikt	400 g

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 95 % (icke-kondenserande)
