Produktbeskrivning

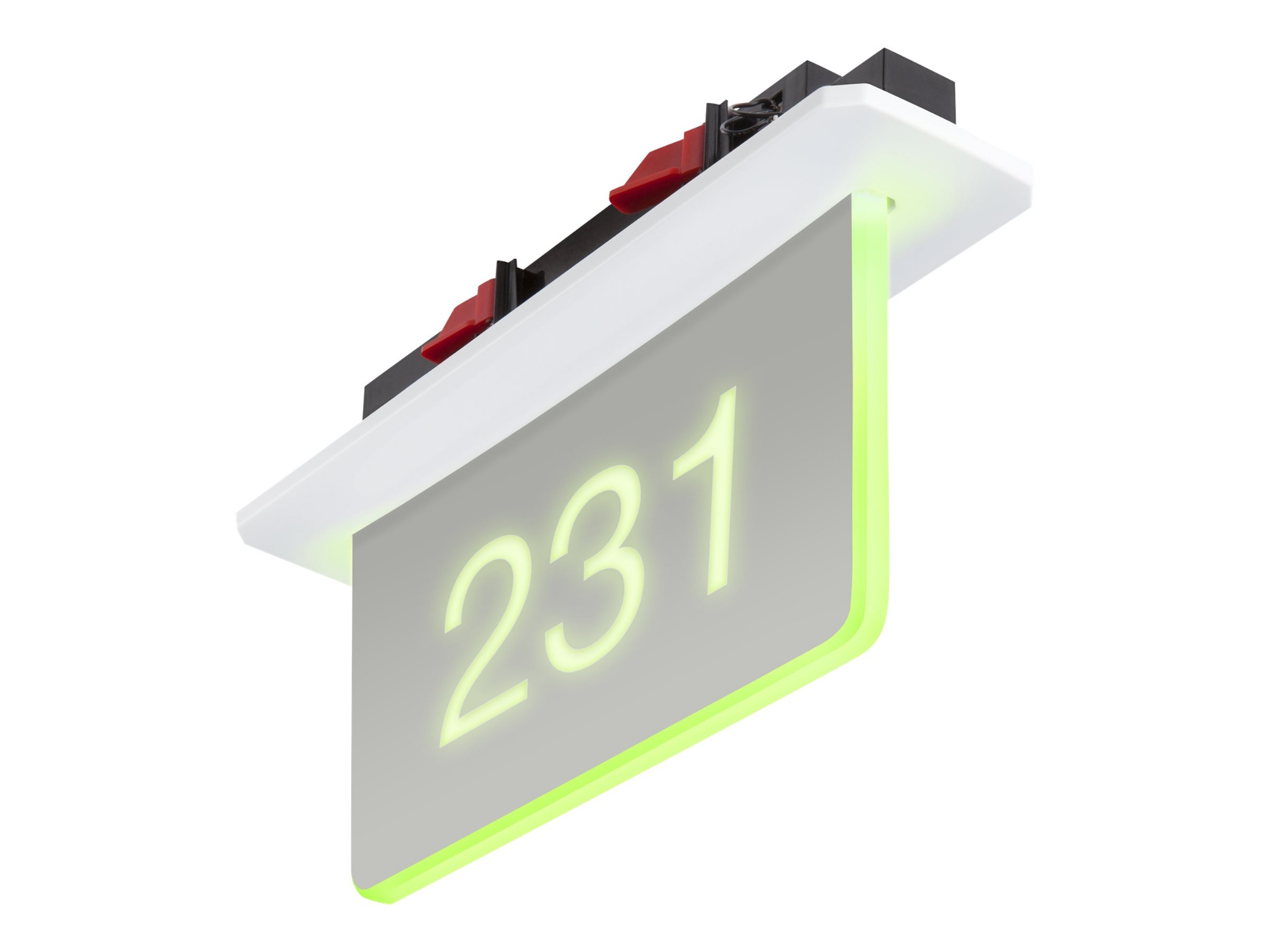

The SSC-100-EL hallway sign provides a clear indication of a room's availability with enhanced contrast and visibility as part of a complete Crestron enterprise room scheduling solution. The SSC-100-EL features a stylish appearance and vivid color illumination that complements any corporate office environment. The two-sided, gray acrylic sign face illuminates bright green or red to indicate the room availability status. The sign face is custom engravable with the room number, name, icon, or other designation. The complete sign assembly mounts into a cutout in a drywall or drop-tile ceiling. TAA Compliant.



Egenskaper

Custom engraving
The SSC-100-EL includes a blank acrylic sign, which allows for custom engraving by a third party. The engraving appears on both sides of the acrylic sign face to identify the room by name, number, or a representative icon image. When illuminated, the engraving is clearly visible at a distance of 150 ft (46 m) if 1 in. fonts are used. Engraving can be changed at any time by purchasing a replacement sign face.

Simple installation
The SSC-100-EL mounts into a drywall or drop-tile ceiling through a 2.0 in. x 10.4 in. (51 mm x 264 mm) cutout using four swiveling dogs that are integrated into the unit. Power and communications are supplied by a single USB or Cresnet cable. A 15 ft (4.57 m) plenum-rated USB cable is included, which connects to the touch screen mounted below the sign. Cresnet permits multiple hallway signs to be daisy chained using a single cable.



Teknisk specifikation

Produkttyp	Skylt för ledigt mötesrum
Strömkälla	USB
Anslutningsteknik	Kabelansluten
Interfaces Details	Cresnet underordnad port USB 2.0
Funktioner	Takmonterbar, RGB LED-belysning

Inkluderade tillbehör	USB-kabel
Produktmaterial	Plast, metall, akryl
Färg	Grå
Energiförbrukning vid drift	2.4 Watt
Standarder som följs	UL, IC, FCC Part 15 Class B

Bredd	7.2 cm
Djup	28.2 cm
Höjd	16.9 cm
Vikt	680 g

Min temperatur vid drift	5 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
