Produktbeskrivning

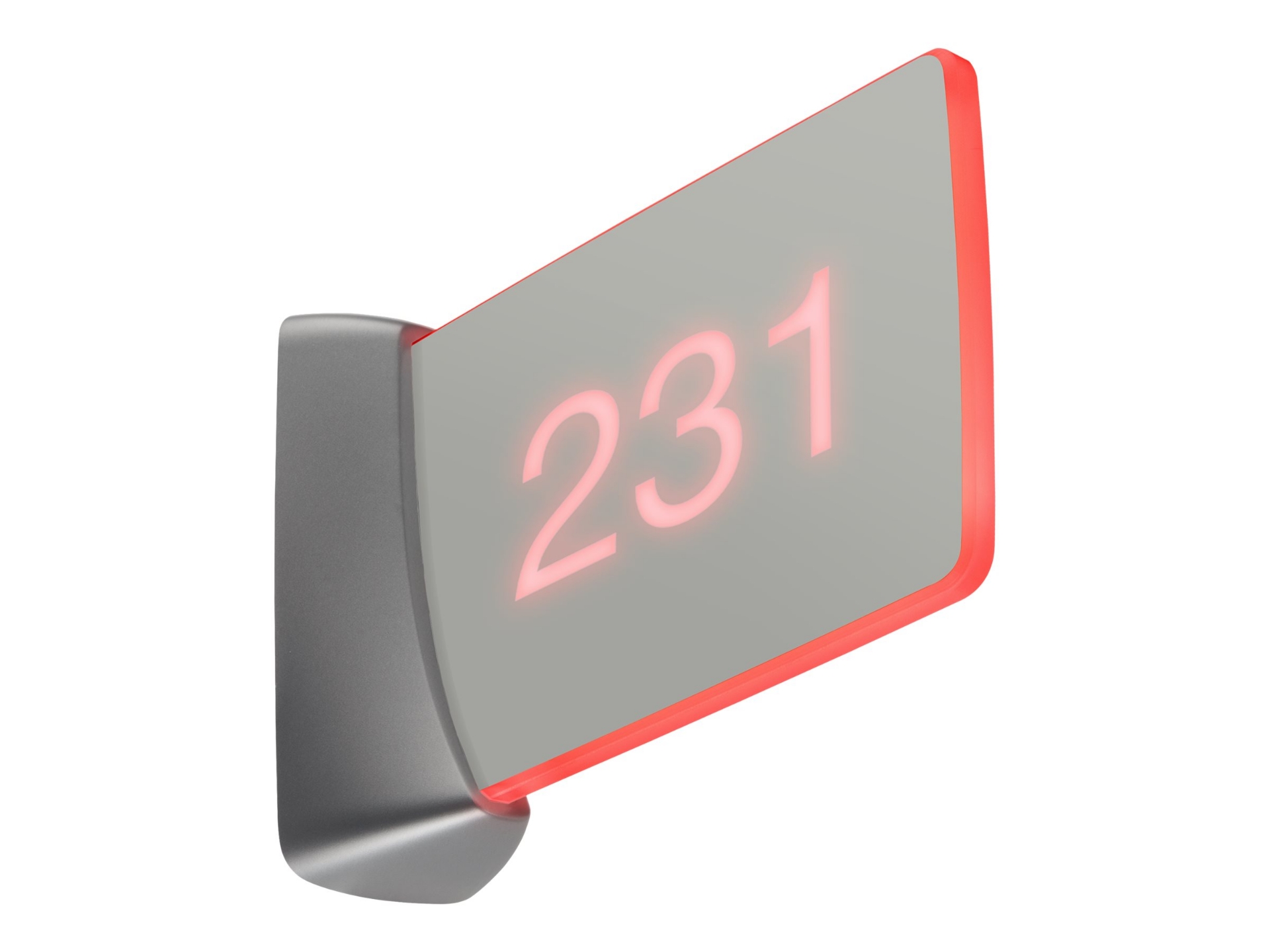

The SSW-100-EL hallway sign provides a clear indication of a room's availability with enhanced contrast and visibility as part of a complete Crestron enterprise room scheduling solution. The SSW-100-EL features a stylish appearance and vivid color illumination that complements any corporate office environment. The two‑sided, gray acrylic sign face illuminates bright green or red to indicate the room availability status. The sign face is custom engravable with the room number, name, icon, or other designation. The complete sign assembly mounts to the wall over a 1‑gang electrical box or plaster ring.



Egenskaper

Custom engraving
The SSW-100-EL includes a blank acrylic sign, which allows for custom engraving by a third party. The engraving appears on both sides of the acrylic sign face to identify the room by name, number, or a representative icon image. When illuminated, the engraving is clearly visible at a distance of 150 ft (46 m) if 1 in. fonts are used. Engraving can be changed at any time by purchasing a replacement sign face.

Simple installation
The SSW-100-EL mounts to the wall over a standard 1-gang electrical box or plaster ring. Power and communications are supplied by a single USB or Cresnet cable. A 6 ft (1.83 m) USB cable is included, which connects to the touch screen mounted below the sign.



Teknisk specifikation

Produkttyp	Skylt för ledigt mötesrum
Strömkälla	Strömadapter, USB
Interfaces Details	Micro-USB 2.0 Cresnet underordnad port
Funktioner	Väggmonterbar, 1 liga, 1 knapp

Inkluderade tillbehör	USB-kabel
Produktmaterial	Plast, metall, akryl
Nominell spänning	Likström 5/24 V
Energiförbrukning vid drift	2 Watt

Bredd	7.1 cm
Djup	21.8 cm
Höjd	16.3 cm
Vikt	2.6 kg

Min temperatur vid drift	5 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
